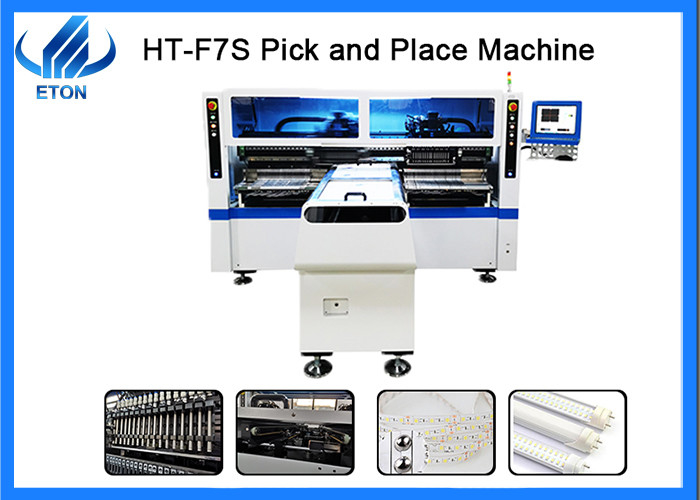

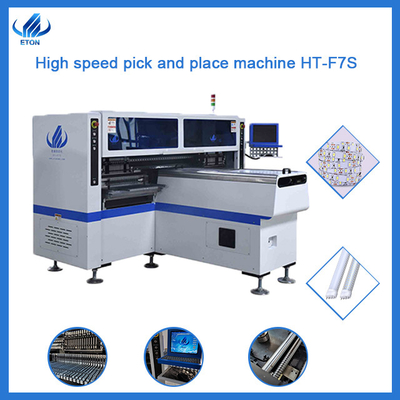

Full automatic customizable LED light with 180000 CPH HT-F7S pick and place machine
The feature of HT-F7S
1. The HT-F7S is a high-speed pick and place machine with dual-arm that can be mounted with 2-4 different types of components and has a production capacity of 180000 CPH.
2. F7S Can be used to produce any length of capacitors, resistors of circuit board, mainly for linear products, like LED tube, LED flexible strip, LED display and so on.
3. F7S has two mounting module, each of which has 17 nozzles and can be mounted separately or synchronously.
4. F7S has high precision, automatic calibration function and can be used for RGB mounting.
5. F7S is a professional high-speed pick and place machine, which is group picking and group mounting.
The main parameter
| Dimension |
| Total weight: 1700kg |
Size: 2700*2300*1550mm |
| PCB |
| PCB length width |
Max:1200*330mm Min:100*100mm |
| PCB thickness |
0.5-5mm |
| PCB clamping |
Adjustable pressure pneumatic |
| Mounting mode |
Group picking and group placing |
| Vision system |
| No. Of camera |
5 sets of digital camera |
| Mounting precision |
±0.02mm |
| Mounting height |
≤5mm |
| Power consumption |
6kw |
| X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |
| Feeding system |
| No. Of feeders station |
68 PCS |
| No. Of head |
34PCS |
| Feeding way |
Electric feeder with double motor |
The package and transport
The products support the way of sea, air and land delivery. In order to ensuring the machine in good condition when arrive the equipment reaches the customer factory, we use the vacuum packaging and wooden box packaging.
FAQ:
1. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
2. What about the mode of transport?
Both sea, air and road are OK.
3. How about your company?
We have more than 11 years experience and have obtained a number of intellectual property technologies.Our products are exported to more than 20 countries and regions.
4. What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
