Product Details:
Payment & Shipping Terms:
|
| Dimension: | 3100*2300*1550mm | Warranty: | 1 Year |
|---|---|---|---|
| Total Weight: | 1700kg | Pcb Length Width: | 250mm*any Length |
| Mounting Mode: | Group Picking And Separately Placing | No.of Camera: | 5 Sets |
| No.of Head: | 68pcs | Mounting Speed: | 200000-250000 CPH |
| High Light: | SMT Placement Machine 250000CPH,Strip Light SMT Placement Machine |
||

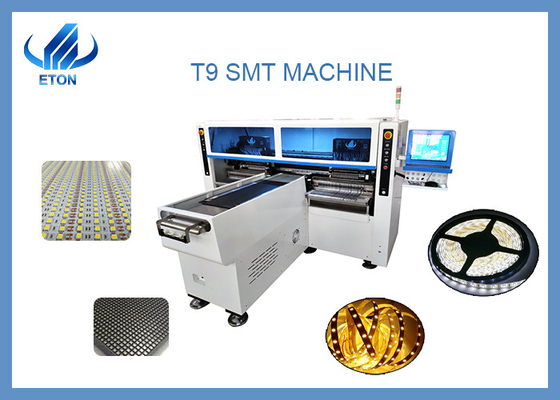

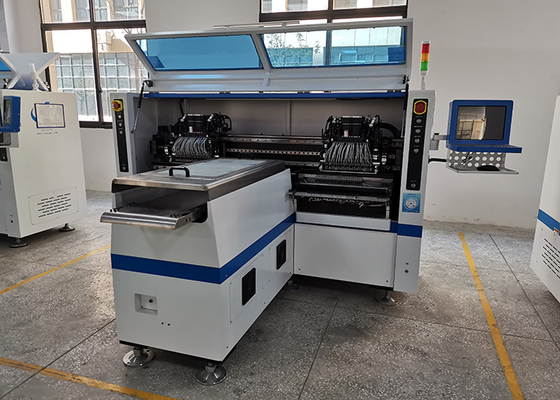

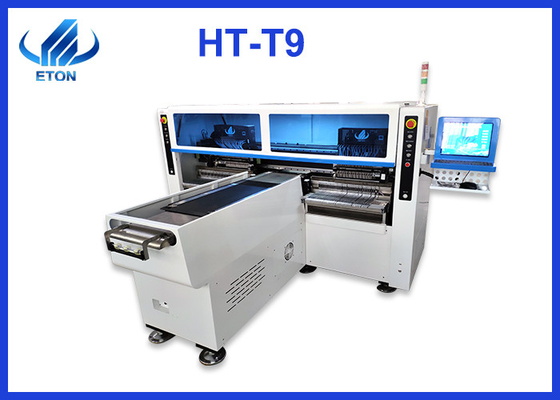

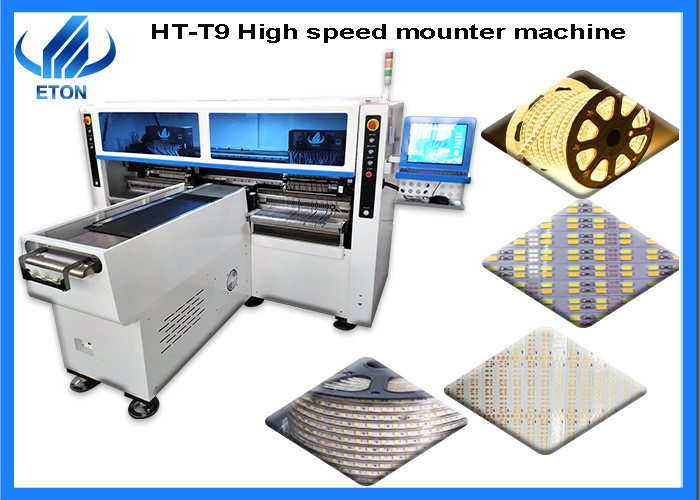

High Quality Reach 250000CPH With 68 Heads Smt Placement Machine With Strip Light
Machine features
Dual arm magnetic linear high-speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000CHP, available for 5M,50M, or any length of flexible strip and roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
The PCB size is 250*any length.
It has 68 PCS feeders station.
Vacuum adsorption, cylinder splint, adjustable track width.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:group to pick and group to mount.
The speed can reach 250000CPH.
It has 5 PCS cameras to work.
Machine parameter
| T9 | ||
| PCB | PCB length width | 250*any length |
| PCB thickness | 0.5-1.5mm | |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
| Mounting mode | Group to pick and group to mount | |
| O.S. | System | Windows 7 |
| software | R&D independently | |
| Vision system | No. Of camera |
5 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 200000-250000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No. Of feeders stations | 68 PCS |
| No. Of nozzles | 68 PCS | |
Exhibition
Certifies
Services
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
FAQ
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
