| Length: | 2700mm | Width: | 2300mm |
|---|---|---|---|
| Height: | 1550mm | Mounting Mode: | Group Picking And Separately Placing |
| PCB Clamping: | Adjustable Pressure Pneumatic | Mounting Speed: | 150000~180000 CPH |
| No. Of Feeders: | 68 PCS | No. Of Head: | 34pcs |
| High Light: | Separately Placing LED Pick And Place Machine,Display LED Pick And Place Machine,68 Feeders LED Placement Machine |
||
18k LED Display pick and place machine linear product production
Technical parameter
| Dimension(L*W*H) | 2700*2300*1550mm |
| Total Weight | 1700kg |
| PCB Length Width | Max:1200*330mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separately placing |
| No. of Camera | 5 sets ( Digital camera) |
| Repeat Mounting Precision | ±0.02mm(Repeat precision) |
| Mounting Height | ≦5mm |
| Mounting Speed | 150000~180000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Space | 0.5mm |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Air supply | 0.4-0.6mpa (4-6kgf/cm²) 150N/min |
| No. of Feeders Station | 68 PCS |
| No. of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
Features
Apply to the 0.6 M, 0.9 M, 1.2 M rigid PCB and 0.5 M, 1 M LED flexible strip. Producing with 2~4 types of materials with high capacity. available for board with any proportion of LED chip and resistor.
Two mounting modules, 18 nozzles for each mounting part, part A and part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: Group to pick and group to mount.
F7s machine application

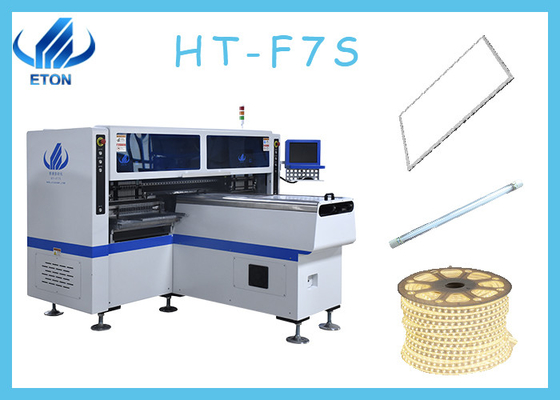

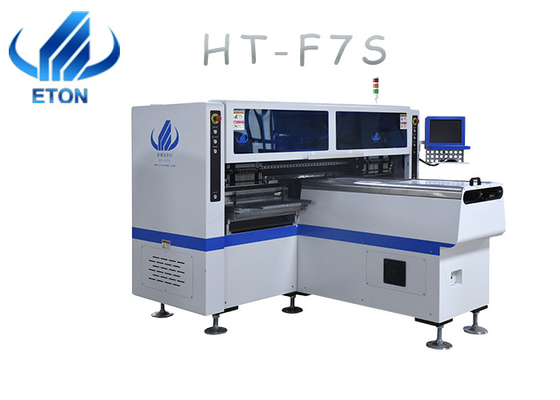

HT-F7S is a high speed pick and place mahcine specialized for linear lights products. Such as LED tube,
LED strip light, LED panel lights and LED display screen.
It take group taking and group mounting working mode, can make the speed be very fast.X,Y,Z xies High-end
magnetic linear motor and servo motor ensure the stability and high accuracy.

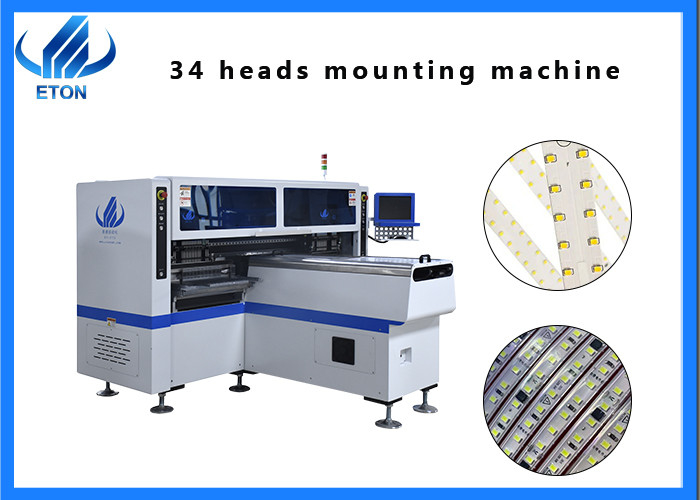

34 heads and 68 feeder stations, makes the machine can produce many kinds of materials, such LED strip light.
