Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2700*2300*1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| Pcb Length Width: | Max:1200*330mm Min:100*100mm | No.of Camera: | 5 Sets |
| No.of Nozzles: | 34 Pcs | Mounting Mode: | Group To Take And Group To Mount |
| Power: | 380AC 50HZ | Mounting Speed: | 150000-180000CPH |
| High Light: | 68 Feeders SMT Mounting Machine,LED Light SMT Mounting Machine,Light SMT Pick And Place Machine |
||

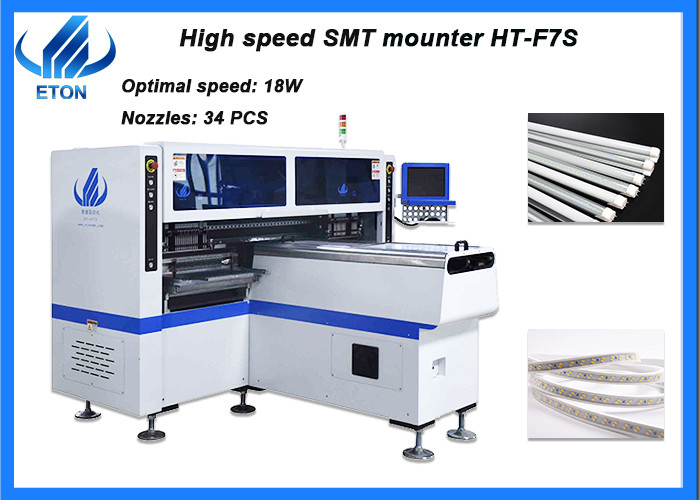

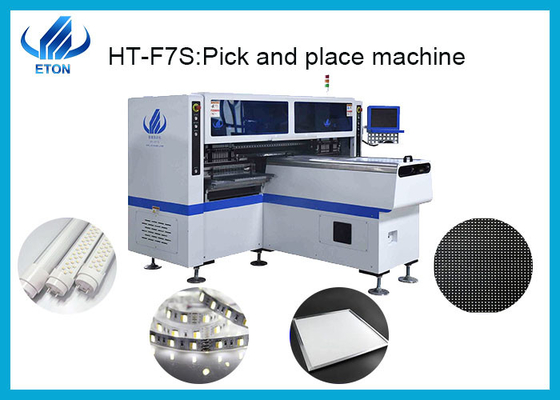

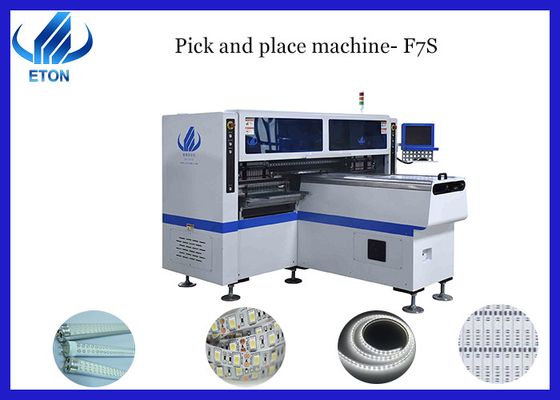

high speed 68 pcs feeders with led tube light smt pick and place machine
Machine parameter
| F7S | |
| Dimension | 2700*2300*1550mm |
| Total weight | 1700kg |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group to take and group to mount |
| No.of camera | 5 sets(vision alignment, mark correction) |
| Mounting speed | 15000-18000CPH |
| Components space | 0.5mm |
| No.of feeder | 68PCS |
| No.of head | 34 PCS |
| Feeding way | Electric feeder with double motor |
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.

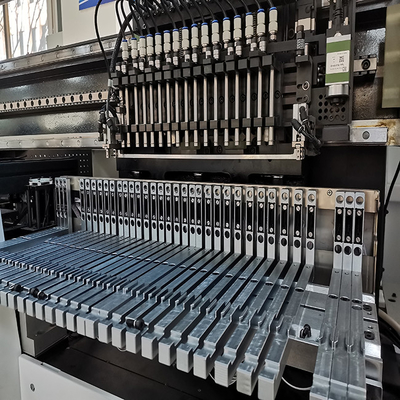

Two mounting modules,18 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: group to take and group to mount.
Company introduction
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.
Exhibition
Package
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
FAQ
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
How long the delivery?
30 Days.
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
