Product Details:
Payment & Shipping Terms:
|
Dimension: | 2700*2300*1550mm | Total Weight: | 1700kg |
---|---|---|---|
Pcb Length Width: | Max:1200*330mm Min:100*100mm | No.of Camera: | 5 Sets |
No.of Nozzles: | 34 Pcs | Mounting Mode: | Group To Take And Group To Mount |
Power: | 380AC 50HZ | Mounting Speed: | 150000-180000CPH |
High Light: | SMT Pick And Place Machine 380V AC,5 Camera SMT Pick And Place Machine,50HZ High Speed Pick And Place Machine |

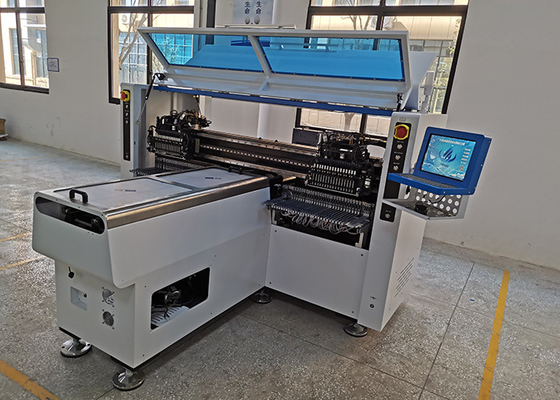

led light smt pick and place machine with high quality and high speed
Features
Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.

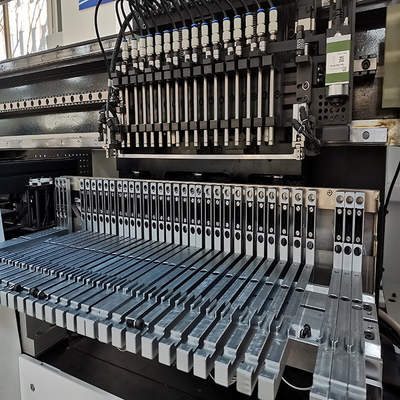

Two mounting modules,18 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: group to take and group to mount.
The speed can reach 15000-18000CPH.

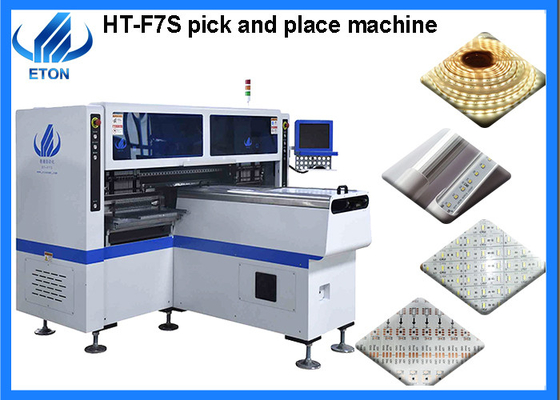

F7S | |
Dimension | 2700*2300*1550mm |
Total weight | 1700kg |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
No.of camera | 5 sets(vision alignment, mark correction) |
Mounting speed | 15000-18000CPH |
Components space | 0.5mm |
No.of feeder | 68PCS |
No.of head | 34 PCS |
Feeding way | Electric feeder with double motor |
About exhibition
Our company
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.
Service
Company five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
“No worries ” after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
ETON mission: professional, excellent technology, sharing the results.
ETON goal: A national well-known brand, build world-class enterprises.
ETON purpose: to create value for customers, creating benefits for society.
ETON vision: Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
FAQ
How is the transportation?
By sea, by air and land transportation.
It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
