High Precision Group picking and group placing 150000CPH capacity Pick And Place Machine
Production Introduction of Pick and Place Machine HT-F7S
1. Dual-arm professional highspeed mounter, 2~4 type of materials capacity reach 18000 CPH
2. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light, available for board with any propotion of LED chip and resistor.
3. Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
4. Calibration automatically, high precision, available for RGB.
5. Exclusive patent technology: Group to take and group to mount.
HT-F7S of Technical Parameter
| Dimension | 2700*2300*1550mm |
| PCB Size |
Max:1200*330mm
Min:100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and group placing |
| Mounting precision | ±0.02mm |
| Mounting height | ≤5mm |
| Mounting speed | 150000-180000 CPH |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers etc. |
| Components space | 0.5mm |
| No.of feeders station | 68 PCS |
| No.of head | 34 PCS |
| Power | 380AC 50Hz |
| Power consumption | 6KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

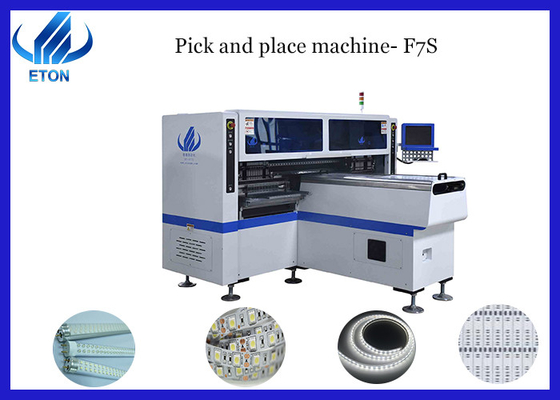

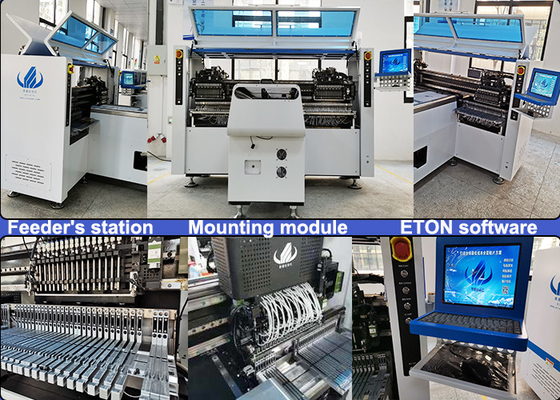

HT-F7S Pictures
Application of HT-F7S

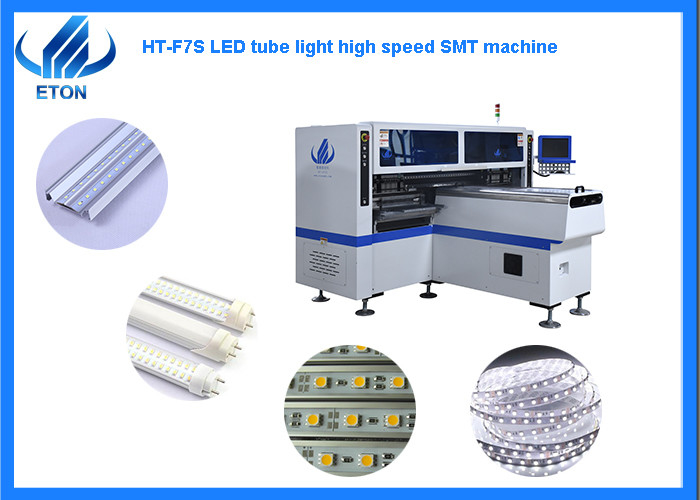

Apply to LED Tube light and the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light etc.
HT-F7S semi-automatic production line
