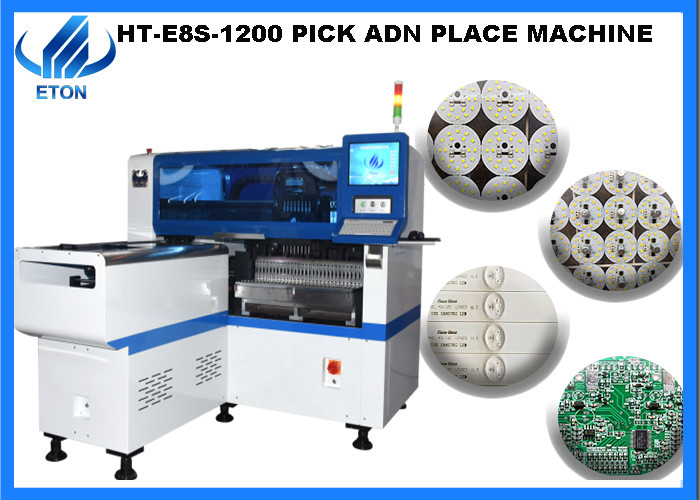

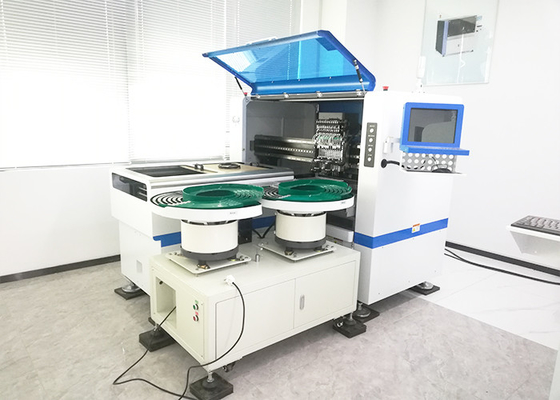

High Precision SMT Mounting Machine 28 Feeders For Household Appliance

High Precision SMT Mounting Machine 28 Feeders For Household Appliance
High Precision SMT Mounting Machine 28 Feeders For Household Appliance

Large Image :  High Precision SMT Mounting Machine 28 Feeders For Household Appliance

Product Details:
Place of Origin: China
Brand Name: Eton
Certification: CE,CCC,SIRA
Model Number: HT-E8S-1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Warranty: 1 Year Power Supply: 380AC 50Hz
Condition: New Weight: 1700kg
Mounting Speed: 45000 Cph Dimension: 2550*1650*1550 Mm
Feeders: 28 Pcs Pcb Thickness: 0.5-5mm
Positioning Accuracy: ±0.04mm
High Light:

Household Appliance SMT Mounting Machine

,

28 Feeders SMT Mounting Machine

,

Multifunctional Pick And Place Machine

SMT high precision mounter with 28 feeders for household appliance pick and place machine



Machine main features

  • Single module magnetic linear motor multifunctional pick and place machine.
  • Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
  • Component: Min. Size 0402, Max. Height 15mm.
  • Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.

Machine main parameter

Model HT-E8S-1200
Dimension 2550mm*1650mm*1550mm
Total weight 1700kg
PCB length width

Max:1200*500mm

Min:100*100mm

PCB thickness 0.5-5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group picking and separately placing, Separately picking and separately placing
Mounting precision ±0.04mm
Mounting speed 45000CPH
No. of feeders station 28PCS single module
No. of head 12 PCS single module



SMT Line solution

High Precision SMT Mounting Machine 28 Feeders For Household Appliance 0



Our advantage

  • Focusing on SMT pick and place machine more than 10 years
  • The products exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
  • ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.



Certificates

Eton obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.

High Precision SMT Mounting Machine 28 Feeders For Household Appliance 1

Packages

Step 1: Packing in film package to prevent dust and water to the machine

Step 2: Packing in foam cotton to protect the outside of the machine

Step 3: Packing in vacuum package to keep dry of the machine during transportation

Step 4: Transportation by truck to specified port



High Precision SMT Mounting Machine 28 Feeders For Household Appliance 2

FAQ

Q1. How long can the delivery date take?

A1.If have stock the delivery date is about 20 days, others is according to the actual situation.



Q2. If I need a perfect line of the machine can you supply?

A2. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.



Q3. How was your services?

A3. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.



Q4. Can you accept CFI as the quoted price?

A4. We only accept EXW as the quoted price.
