Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Dimension: | 2550*1650*1550 Mm | Feeders: | 28 PCS |
| Pcb Thickness: | 0.5-5mm | Speed: | 45000 Cph |
| Positioning Accuracy: | ±0.04mm | PCB Size: | Max:1200*500mm Min:100*100mm |
| High Light: | Multifunctional LED Pick And Place Machine,LED Pick And Place Machine 45000 CPH,Automatic LED Bulb And SMT Pick And Place Machine |
||
Vision camera for high precision with 45000 cph capacity for power driver, DOB bulbs SMT machine
Description

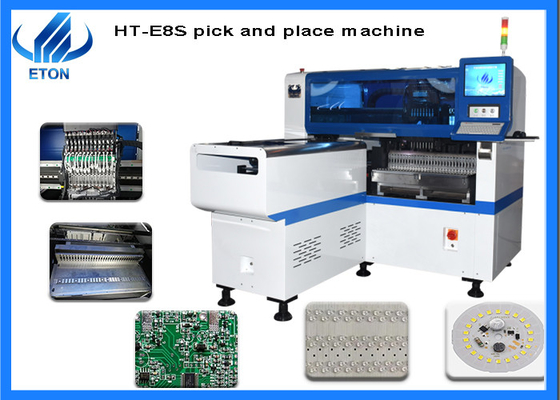

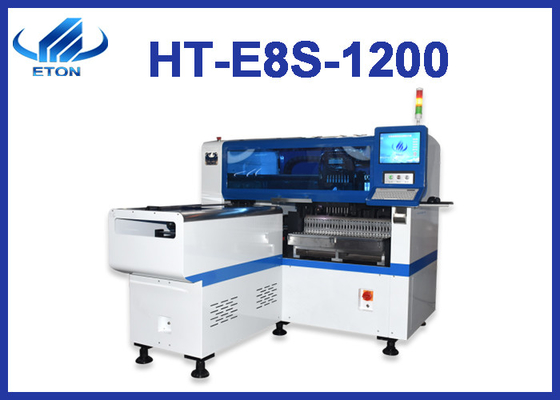

Multifunctional SMT pick and place machine HT-E8S-1200 2550mm, with 12 pcs heads which can mount diverse products as power driver, electric board lens, DOB bulb, linear bulb, household appliance etc, capacity reach 45000 CPH.
•Single module magnetic linear motor multifunctional pick and place machine.
•Mounting components:LED chip, capacitors, resistors, lens, IC, shaped components, etc.
•Component: Min. Size 0402, Max. Height 15mm.
•Application: Power driver, electric board, lens, DOB bulb, linear bulb, household appliance etc.
•Electronic feeder feeding system.
•Vision alignment flight identification, Mark correction.
•Non- stop material re-loading function.
•Auto-optimization after coordinates generated, etc.
Machine main features
Machine parameter
| Model | HT-E8S-1200 |
| Dimension | 2550mm*1650mm*1550mm |
| Total weight | 1700kg |
| PCB length width |
Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Mounting mode | Group picking and separately placing, Separately picking and separately placing |
| Mounting precision | ±0.04mm |
| Mounting speed | 45000CPH |
| No. of feeders station | 28PCS single module |
| No. of head | 12 PCS single module |
Machine main part
Machine application
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q1. What is your usual payment term?
A1. Our usual payment term is T/T, that requires to pay 30% in advance, and pay the balance off before the delivery of the goods.
Q2. How can I contact you to buy the goods in an efficient way?
A2. Making enquiry of the products you want on the trading platform of Alibaba, Tradelink, foreign trade Express, or contact us with the social software as Whatsapp, Skype, etc.
Q3. How many components can your pick and place machine mount in a PCB board?
A3. While this is for our clients needs and the size of the PCB board.
Q4. Whether you have professional engineers for installation of the machine in India?
A4. Yes, we have professional engineers in India to provide considerable service to our clients.
