Dimension: | 2550*1650*1550mm | Total Weight: | 1700kg |
---|---|---|---|
PCB Length Width: | Max:1200*500mm Min: 100*100mm | PCB Thickness: | 0.5-5mm |
PCB Clamping: | Adjustable Pressure Pneumatic | Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing |
No.mounting Speedof Camera: | 2 Sets | Mounting Speed: | 45000CPH |
High Light: | 12 Heads SMT Placement Machine,SMT Placement Machine Single Module,Multi Functional SMT Mounter Machine |

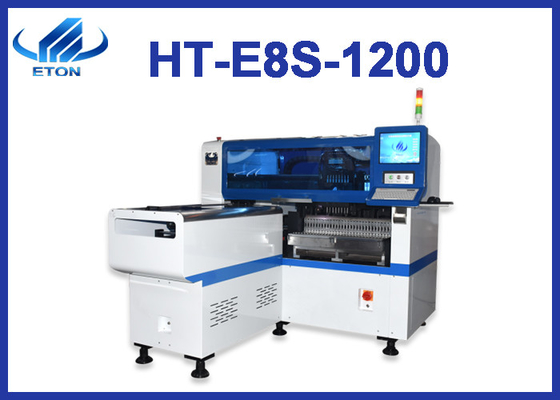

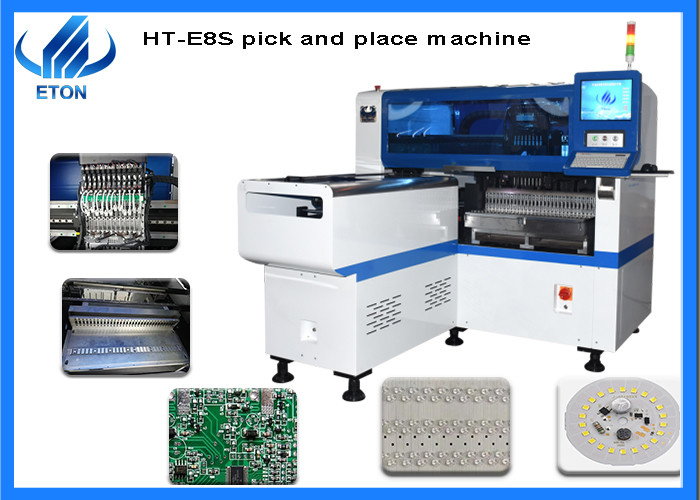

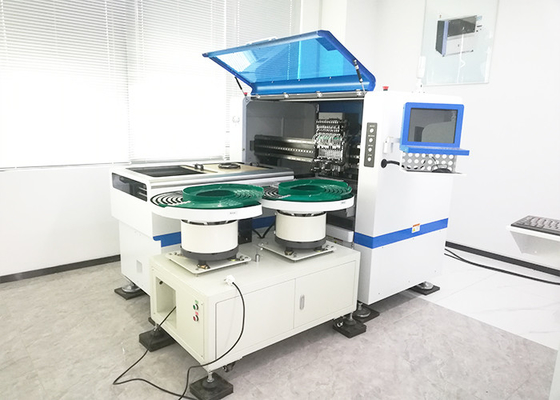

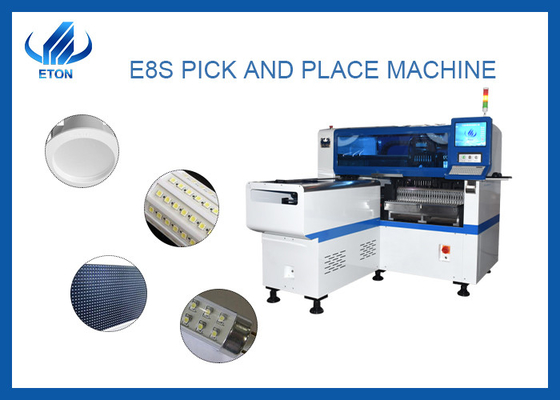

12 Pcs Heads Single Module Linear Motor Multifunctional Smt Pick And Place Machine
Machine parameter
E8S-1200 | |
Dimension | 2550*1650*1550mm |
Total weight | 1700kg |
PCB length width |
Max:1200*500mm Min:100*100mm |
No. Of camera | 2 sets |
Mounting speed | 45000CPH |
Components space | 0.2mm |
Feeding way | Electric feeder with double motor |
No.of feeder | 28 PCS single module |
Features
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Component: Min. Size 0402 Max. height 15mm.
Application: Power driver. Electric board. Lens.DOB bulb. Linear bulb. Household appliance etc.
Electronic feeder feeding system
Vision alignment flight identification, Mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
It has 28 PCS single module feeders station.
Its speed can reach 45000CPH.
Application
power driver, electric board, lens, DOB bulb, linear bulb, household application, etc.
Our company
ETON was founded in 2011. Our company is the leading manufacturer of global led light high speed pick and place machine.
We have more than 10 years of R&D experience and mature technology and our products are exported to more than 20 countries and regions, including South Korea,India, Vietnam, Tunisia, Iran etc. ETON obtained a number of intellectual property technologies ,including 9 invention patents, 112 practical patents,12 software copyrights.
And we have also won many prestigious awards, such as Shenzhen high-tech enterprise, Guangdong high-tech enterprise, China high-tech enterprise, Shenzhen TOP Brand and so on.
FAQ
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
How long the delivery?
30 Days.
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
