Product Details:
Payment & Shipping Terms:
|
Dimension: | 2550*1650*1550mm | Total Weight: | 1700kg |
---|---|---|---|
PCB Length Width: | Max:1200*500mm Min: 100*100mm | PCB Thickness: | 0.5-5mm |
PCB Clamping: | Adjustable Pressure Pneumatic | Mounting Mode: | Group Picking And Separately Placing, Separately Picking And Separately Placing |
No.mounting Speedof Camera: | 2 Sets | Mounting Speed: | 45000CPH |
High Light: | Multifunctional SMT Pick And Place Machine,Linear Motor SMT Pick And Place Machine,Single Module SMT Pick And Place Equipment |

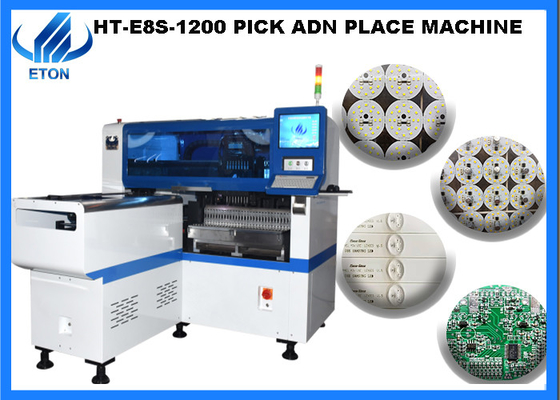

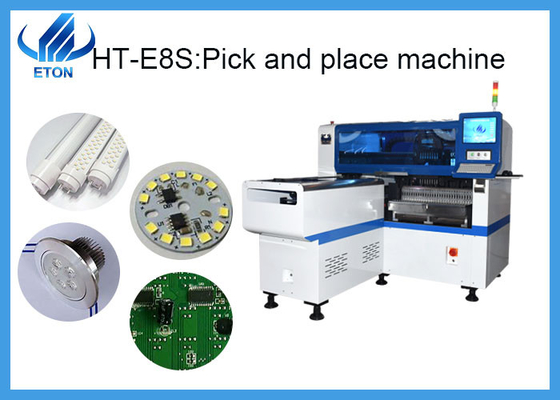

high speed Single Module Linear Motor Multifunctional Smt Pick And Place Machine
Introduction of machine
Single module magnetic linear motor multifunctional pick and place machine.
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Vision for the flight identification, mark correction
Application: Power driver. Electric board. Lens.DOB bulb. Linear bulb. Household appliance etc.
Electronic feeder feeding system
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.

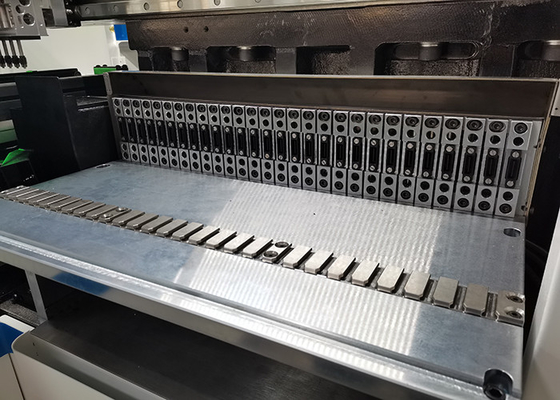

It has 28 PCS single module feeders station.
Its speed can reach 45000CPH.

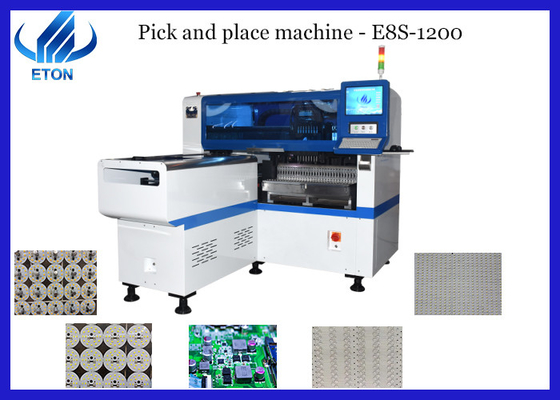

E8S-1200 | |
Dimension | 2550*1650*1550mm |
Total weight | 1700kg |
PCB thickness | 0.5-5mm |
Mounting speed | 45000CPH |
Mounting mode | Group picking and separately placing, separately picking and separately placing |
No.of camera | 2 sets |
No.of feeder | 28 PCS single module |
No.of head | 12 PCS single module |
Feeding way | Electric feeder with double motor |
About company
Our exhibition
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Package
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
FAQ
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
Are you a reliable cooperator?
Yes, we specialized in SMT parts over more 10 years in Shenzhen China. We participated in many exhibitions in abroad and domestic. We have a more 50000㎡industrial park, total 7 building and 300-500 employees. We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. And our high speed machines’ speed can reach 250000CPH, broken the world record.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
