Single module led light assembly 45000cph multifunctional pick and place machine
Features:

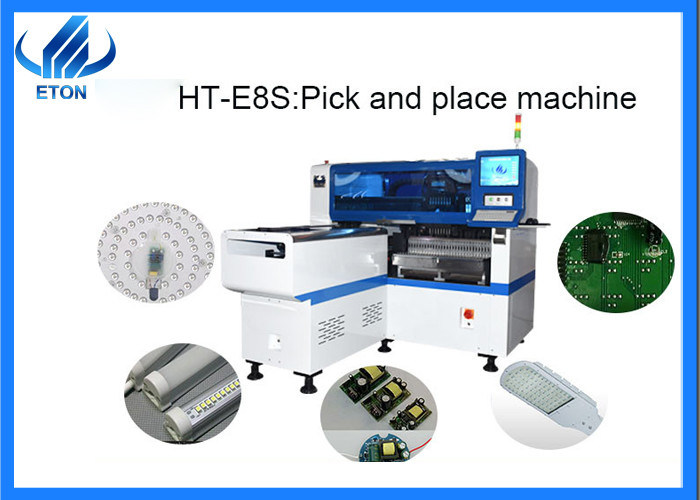

HT-E8S-1200: Single module magnetic linear motor multifunctional pick and place machine.
It equipped with 12nozzles, which speed reached 45000CPH.
Mounting components:Led chip,capacitors,resistors,lens,IC,shape components,etc.
Components:Min.size0402 Max.height 15mm
Application:power drive. Electric board. Lens. DOB bulb.linear bulb. Household appliance etc.
Adopt electronic feeder feeding system. Non-stop material re-loading function.
Technical parameter:
| Model |
HT-E8S-1200 |
| Dimension |
| Length |
2550 mm |
| Width |
1650 mm |
| Height |
1550 mm |
| Total Weight |
1700 kg |
| PCB |
| PCB Length Width |
Max:1200*500mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| O.S. |
| System |
Windows7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input Device |
Keyboard, Mouse |
| Vision System |
| No. of Camera |
2 sets of imported camera |
| Vision for the flight identification, MARK correction |
| Mounting Precision |
±0.04mm |
| Mounting Height |
<15mm (Automatic Changing) |
| Mounting Speed |
45000 CPH |
| Components |
LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space |
0.2mm |
| No. of Feeders Station |
28 PCS |
| No. of nozzles |
12 PCS |
| Power |
380AC 50HZ |
| Power Consumption |
4 KW |
| Operating Environment |
23℃±3℃ |
| Conveyor transmission |
Max length :1200 mm |
| Transmission Speed |
＞1000mm/sec |
| Transmission Direction |
Both direction (option) |
| Transmission Mode |
Auto online drive |
| Air supply |
0.4-0.6mpa (4-6kgf/cm2)150N/min |
| Electrical control |
Independent research and development by ETON |
| X,Y,Z Axis Drive way |
High-end magnetic linear motor + Servo motor |
| Feeding way |
Electric feeder with double motor |
Machine main part:
Our advantages:
1.We are leading manufacturer of automatic high speed pick and place machine.
2.80% large and listed led factory are our client.We have over decades development history.
3.We have an industrial park covering an area of 50,000 square meters in jiangxi, which has various machine.
4.We have world record-breaking high speed pick and place machine, which speed reached 250000CPH.
5.We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
Certificate of honor:
9 invention patents, 112 practical patents, 12 software copyrights.
ETON is rated as “Shenzhen high-tech enterprise”. “China high- tech enterprise”. “2015 LED Technology Innovation”. “The 4th China LED First Innovation Award”. “Industry Special Contribution Award” etc.
SMTproduction solution:
Services:
1.Visiting customers regularly and gather information.
2.Provide latest information about technology and equipment.
3.We will provide video training online with you as long as bought machine, Which ensured you
you could operate our machine.
4.We can send our foreign engineers to buyer’s factory to install machine freely.
5.Any parts need to be repaired and replaced will be free during warranty(1 year).
FAQ:
1. Can you provide whole SMT line with me?
Of course. we can provide whole line solution if you want. We are very professional on SMT field.
2. What is the difference Between full automatic line and semi automatic line ?
SMT production line mainly include stencil printer , pick and place machine, oven machine.
The main difference between a fully automatic production line and a semi-automatic production line is whether the printing machine is a fully automatic or semi-automatic printing machine, which is more expensive than a semi-automatic production line.
3.Can we customize the machine?
Of course. All of our machine can be customized.
4.How about the machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
