Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Pick And Place Machine | Dimension: | 3100*2300*1550mm |
|---|---|---|---|
| Weight: | 1700kg | PCB Size: | 250* Any Length |
| Mounting Speed: | 200000~250000cph | Application: | SMT Production Line |
| Power Supply: | 380AC 50HZ | Warranty: | 12 Months |

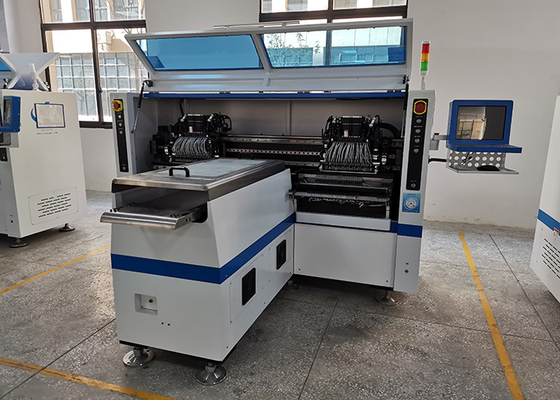

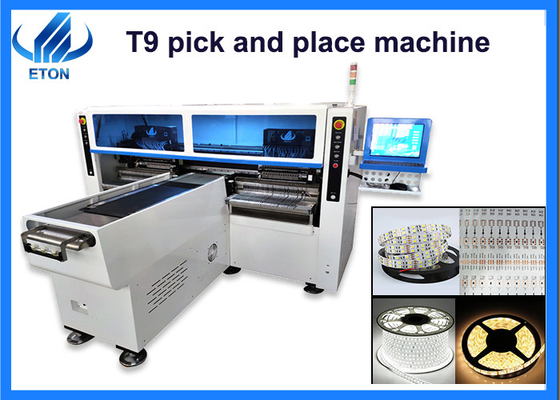

Highspeed capacity reach 250000CPH 68 PCS heads for any length flexible strip smt pick and place machine
Product description
Suitable for the PCB max size 250* any length.
Vacuum adsorption, cylinder splint, adjustable track width
Vision system, 5 sets of digital camera, vision alignment, Mark correction
The repeat mounting precision is 0.02mm
Product features
1.Producing with 4 types materials at the same time with high capacity, available for 5m, 50m, or any length of flexible strip and Roll to Roll.

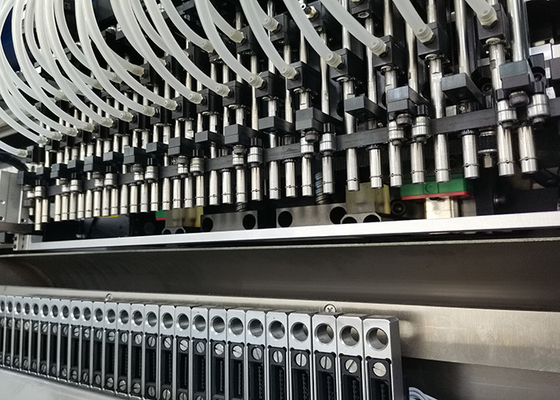

2.Dual arm four module, 18 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
3.Calibration automatically, high precision, available for RGB.
Machine parameter
| Length*Width*Height | 3100*2300*1550mm |
| Weight | 1700kg |
| PCB length width | 250mm*any length |
| No.of camera | 5sets |
| Mounting height | ≤5 mm |
| Mounting speed | 200000-250000cph |
| Components space | 0.5mm |
| Power | 380AC 50HZ |
Application
Suitable for 5M,50M, or any length of flexible strip and Roll to Roll.
Package
Vacuum package wooden case
Exhibition
we often participated in exhibitions in Thailand, Turkey, Mumbai, Delhi, Pakistan,Egypt and so on. However, due to the epidemic situation, we did not go aboard to participarte in the exhibition.
Favorable Reviews
Our products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Egypt, Turkey, Russia , Brazil,etc.
FAQ
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q: How about the quality of your products?
A: We have more than 10 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
Q:Do you have offices and local engineers in overseas?
Yes, we have established offices and local engineers in Egypt, Turkey and India,etc
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line
Q: Is the software for these machine in English?
A: Yes. Our software is independently developed, there are two version in English and Chinese.
