Product Details:
Payment & Shipping Terms:
|
| Dimension: | 3100*2300*1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | 250mm*any Length | PCB Thickness: | 0.5-1.5mm |
| Mounting Speed: | 200000-250000CPH | Mounting Mode: | Group Picking And Separately Placing |
| Components Space: | 0.5mm | Feeding Way: | Electric Feeder With Double Motor |

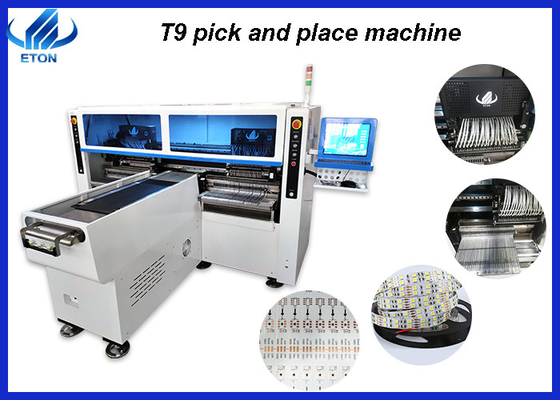

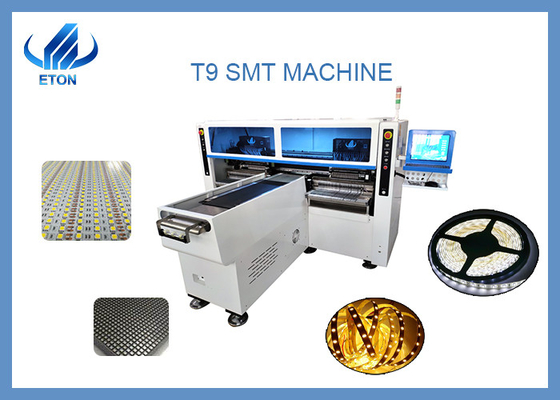

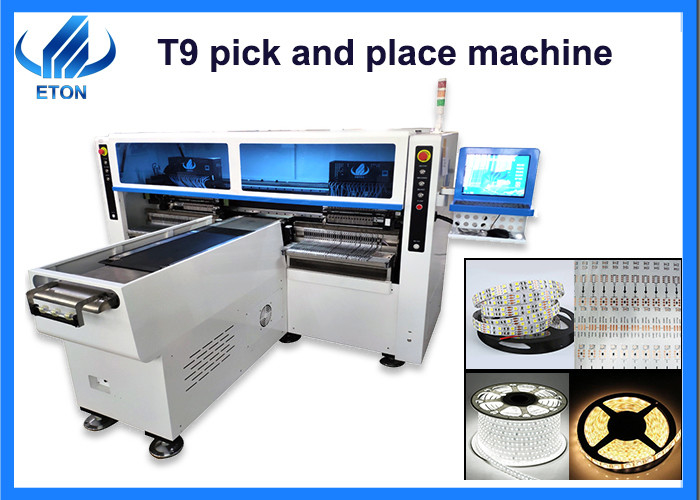

68 PCS Heads Linear Motor Multifunctional Smt Pick And Place Machine
Machine parameter
| T9 | ||
| PCB | PCB length width | 250*any length |
| PCB thickness | 0.5-1.5mm | |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
| Mounting mode | Group to pick and group to mount | |
| O.S. | System | Windows 7 |
| software | R&D independently | |
| Vision system | No. Of camera |
5 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 200000-250000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No. Of feeders stations | 68 PCS |
| No. Of nozzles | 68 PCS | |
Machine features
Dual arm magnetic linear high-speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000CHP, available for 5M,50M, or any length of flexible strip and roll to roll.

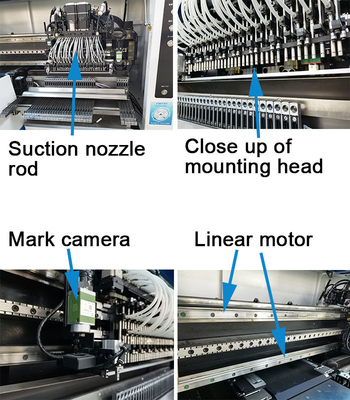

Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
The PCB size is 250*any length.
It has 68 PCS feeders station.
Vacuum adsorption, cylinder splint, adjustable track width.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:group to pick and group to mount.
The speed can reach 250000CPH.
It has 5 PCS cameras to work.
Company introduction
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.
About exhibition
Service
Company five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
“No worries ” after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
ETON mission: professional, excellent technology, sharing the results.
ETON goal: A national well-known brand, build world-class enterprises.
ETON purpose: to create value for customers, creating benefits for society.
ETON vision: Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
FAQ
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
This is the first time I use this kind of machine, is it easy to operate?
It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
What are the advantages of your company?
We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. We can provide latest information about technology and equipment.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
