Product Details:
Payment & Shipping Terms:
|
Dimension: | 3100*2300*1550mm | Total Weight: | 1700kg |
---|---|---|---|
PCB Length Width: | 250mm*any Length | PCB Thickness: | 0.5-1.5mm |
Mounting Speed: | 200000-250000CPH | Mounting Mode: | Group Picking And Separately Placing |
Components Space: | 0.5mm | Feeding Way: | Electric Feeder With Double Motor |

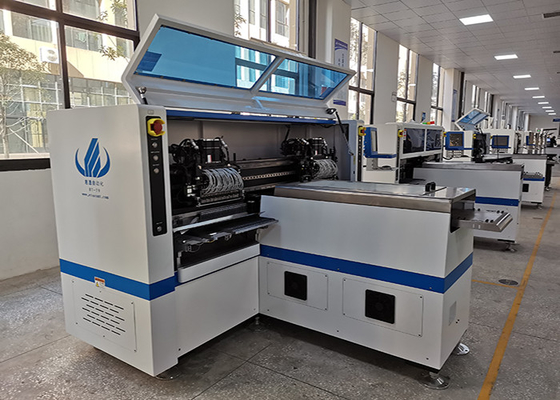

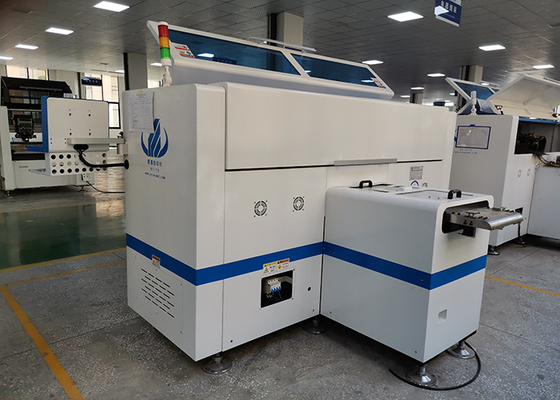

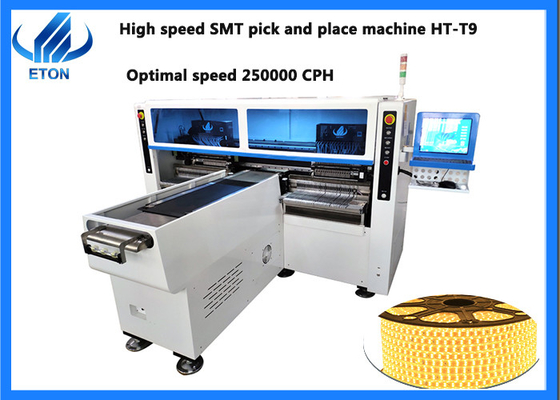

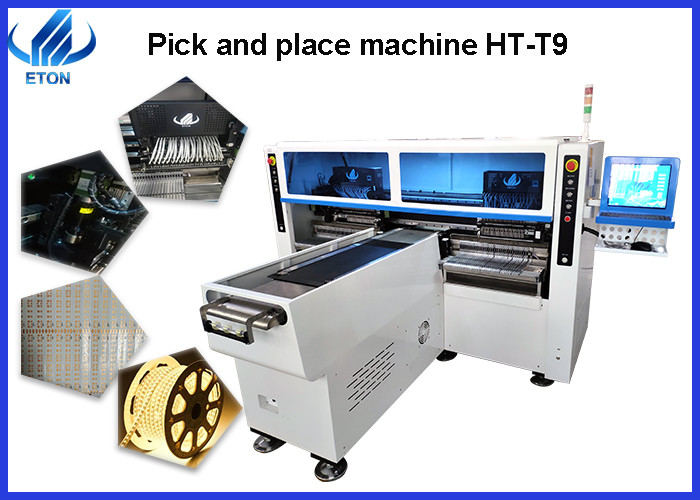

high speed reach 250000CPH Linear Motor Multifunctional Smt Pick And Place Machine
Machine features
T9 | ||
PCB | PCB length width | 250*any length |
PCB thickness | 0.5-1.5mm | |
PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
Mounting mode | Group to pick and group to mount | |
O.S. | System | Windows 7 |
software | R&D independently | |
Vision system | No. Of camera |
5 sets of imported camera (Vision alignment ,mark correction) |
Mounting speed | 200000-250000CPH | |
Electrical control | Independent research and development by ETON | |
Feeding system | No. Of feeders stations | 68 PCS |
No. Of nozzles | 68 PCS |
Dual arm magnetic linear high-speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000CHP, available for 5M,50M, or any length of flexible strip and roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Vacuum adsorption, cylinder splint, adjustable track width.
Calibration automatically, high precision, available for RGB.
Application
Company introduction
About exhibition
Foreign exhibition
India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition
Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Services
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
FAQ
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
How is the transportation?
By sea, by air and land transportation.
