Product Details:
Payment & Shipping Terms:
|
| Machine Type: | Highspeed SMT Machine | Dimension: | 3100*2300*1550mm |
|---|---|---|---|
| Weight: | 1700kg | PCB Size: | 250mm*any Length |
| Components Space: | 0.5mm | Head: | 68 Pcs |
| No.of Feeder Station: | 68 Pcs |

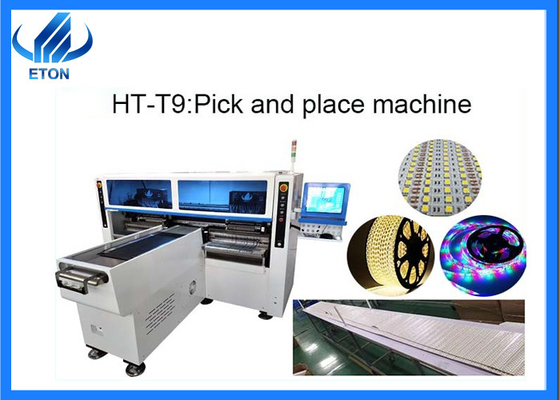

Magnetic linear motor 68 Head led assembly 250000cph highspeed pick and place Machine
Features:
HT-T9 SMT pick and place machine is for 5 meters, 50 meters and any length of wire board, disposable mount. Apply to LED soft lamp manufacturer.
This machine has a total of five digital camera,(Vision alignment, Mark correction).
It’s identified the correct position by camera. So it’s high precision and good stability.
68 heads ,68 feeder stations.Dual Arm four module , 17 nozzles for each mounting part. Part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB
Capacity can Reach 250 000 CPH.
Main Technical parameter:
| Model | HT-T9 |
| Dimension(L*W*H) | 3100*2300*1550mm |
| Weight | 1700kg |
| PCB length width | 250mm*any length |
| PCB thickness | 0.5~5mm |
| Mounting mode | Group to picking and group to mount |
| Mounting height | ≤5mm |
| Mounting speed | 200000~250000CPH |
| Power consumption | 6KW |
| No. Of feeders station | 68 PCS |
| No. Of head | 68 PCS |
Exhibition and Certificate:
ETON concentrate on building an international brand,to show the word the technological strength of our brand.In the past, we have participated in many led lighting exhibitions and professional equipment exhibition in India,Egypt, Turkey and many other countries.
Our advantages:
80% larger and listed led factory are our client and occupied a vast foreign LED market.
With an industrial park of 50,000 square meters, concentrating on the R&D and production of the SMT industry.
Machine’s software is easy to operate, can update anytime by free.
Decades experiences in the pick and place machine field.
Application:
HT-T9 SMT pick and place machine is for 5 meters, 50 meters and any length of wire board,
disposable mount. Apply to LED soft lamp manufacturer.
Packing:
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix oi in the wood carton, effectively prevent collision and shock.
Our service:
Free Warranty: one year warranty factory services.
Free installation:on-site free installation to ensure smooth production.
We can configure the production line for you according to your product requirements.
Free Software Upgrade.
Free Technical Training.
FAQ:
1. What do you do if something goes wrong with my machine?
Firstly, we will let the engineer contact you online to solve.
Secondly, if the line can not solve, we will arrange overseas engineer go to your factory address problem.
2.what can you buy from us?
Pick and place machine, Automatic stencil printer,SMT machine,Reflow oven,LED light production line.
3.Which countries are your machines mainly sold to?
Our products exported to more than 20 countries and regions, including Turkey, Egypt, India, Pakistan, South Africa, Brazil etc.
4.What’s the terms of payment?
T/T is OK.30% Down payment in advance,70% payment before delivery.
