Product Details:
Payment & Shipping Terms:
|
Length: | 1200mm | Width: | 1930mm |
---|---|---|---|
Height: | 1500mm | Total Weight: | 2500kg |
PCB Thickness: | 0.1-6mm | Mounting Mode: | Group Picking And Separately Placing、separately Picking And Separately Placing |
Mounting Speed: | 80000CPH | No.of Feeders Station: | 68 |
High precision AC380V 6KW Double module multifunctional LED mounting machine
Technical parameter
Dimension | |
length | 1200mm |
width | 1930mm |
height | 1500mm |
Total weight | 2500kg |
PCB | |
PCB length width | Max:450*300mm(Non-omnidirectional 610*300) Min:80*80mm |
PCB thickness | 0.1-6mm |
PCB clamping | Pneumatic |
Mounting mode | Group picking and separate placingseparate picking and separate placing |
O.S | |
system | Windows7 |
software | R&D independently |
display | Touch screen monitor |
Input device | Keyboard, Mouse |
Vision system | |
NO. Of Camera | 4 PCS |
Accurate image recognition | |
Vision alignment, MARK correction | |
Mounting precision | ±0.04mm |
Mounting height | ≦15mm |
Mounting speed | 80000 CPH |
Components | LED , capacitors, resistors, shaped components, etc. |
Component’s speed | 0.2mm |
No. of feeders’ station | 64 PCS |
No. of nozzles | 20 PCS |
Power | AC 380V |
Power consumption | 6kw |
Operating environment | 23℃±3℃ |
Transmission speed | >1000mm/sec |
Transmission Direction | Single(left→ right or right→ left) |
Transmission Mode | Online drive |
Position Mode | Optical |
Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
Electrical control | Independent research and development by ETON |
Motion control card module 1 set | Independent research and development by ETON |
X,Y,Z Axis Drive way | High-end magnetic linear motor |
Feeding way | Electric feeder with double motor |

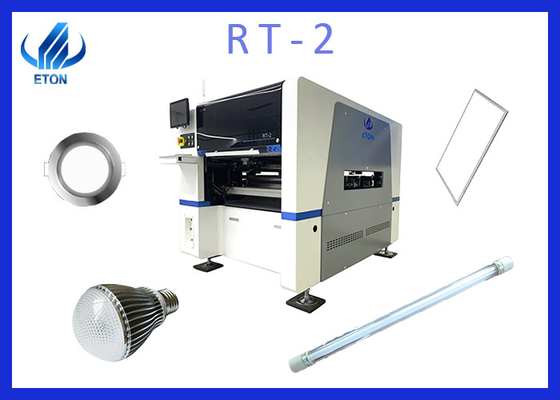

Introduction to R2

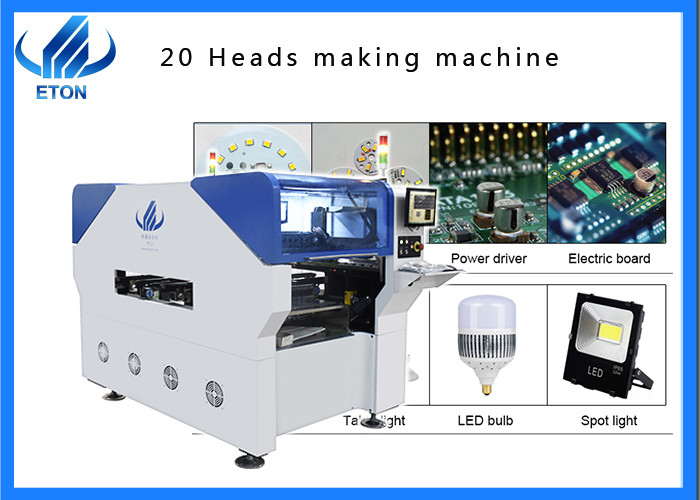

1.Rt-2 dual-mode group multi-functional mounter, the new machine is newly upgraded and the shell is more exquisite. It adopts high-end magnetic levitation and servo system to make the mounting accuracy more precise. The multi-functional machine is suitable for a variety of products, such as panel lamp, downlight, bulb, drive, spotlight, street lamp, display screen, etc.
2.Electronic feeder feeding system.
3.Vision alignment flight identifications, Mark correction.
4.Auto-optimization after coordinates generated, etc.
What is a patch
SMD LED is pasted on the surface of circuit board, which is suitable for SMT processing and reflow soldering. SMD LED solves the problems of brightness, viewing angle, flatness, reliability and consistency. Compared with other packaging devices, it has the advantages of strong anti vibration ability, low solder joint defect rate and good high-frequency characteristics. It encapsulates more LED chips in a smaller area and adopts lighter PCB and reflective layer materials, It shows that the reflective layer needs less epoxy resin to be filled. By removing the heavy carbon steel material pins and reducing the size, the weight of the product can be easily reduced by half, and the volume and weight are only about 1 / 10 of that of the traditional plug-in components. After the chip packaging is adopted, the volume of electronic products is reduced by 40% - 60%, and the weight is reduced by 60% - 80%, which finally makes the application more perfect.

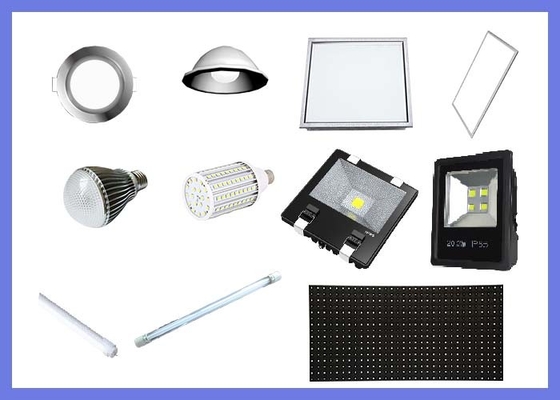

APPLICATION
Company show
Shenzhen ETON Automation Equipment Co.,Ltd.was founded in 2011. It is a manufacturing and process solution provider focusing on R&D. production. sales and service of SMT high-speed pick and place machines and SMT periph automation equipment. The company has SMT high-speed pick and place machine division. precision solder paste sten printer division.high-speed precision dispensing equipment division, and SMT peripheral automation equipment division.
PACKING
All machines are packed with vacuum and wooden packing like the one in the pictures. Shipping: --- We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
FAQ
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
Q: How about the after-sale service? How about the warranty?
A: We have a team of professional engineers to solve your problems. Any parts that require repair and replacement are free ofcharge during the warranty period. We can also provide you with training and on-site installation, and support remote control of the machine, the machine uses Chinese and English interface, very easy to operate.
