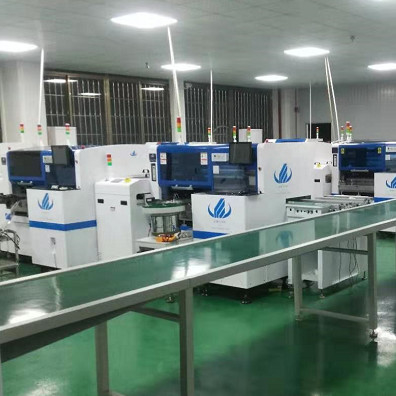

25W CPH led production line high precision smt placement machine
What are the functions of high-quality domestic placement machines PART 2?
1.R-axis angle calibration:
When the SMD device is designed on the PCB, different positions and functional connections require a certain angle.
2.IC placement function:
Usually, a pick and place machine can meet some IC mounting of different sizes, and high-speed machines can only mount small ICs.
3.Automatic transmission function:
The PCB of the automatic placement machine is automatically transferred by the machine.

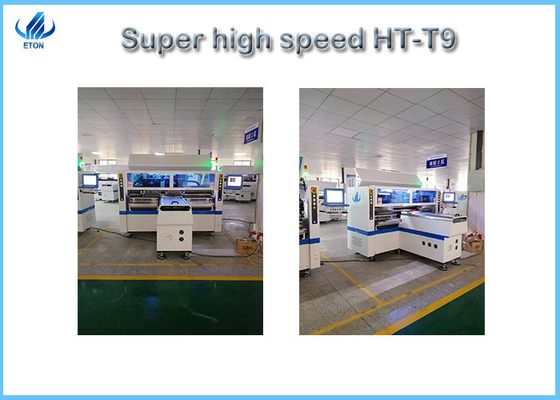

SMT Mounter Machine HT-T9 Detail
| How many materials can produce at the same time? 4 types materials at the same time. |

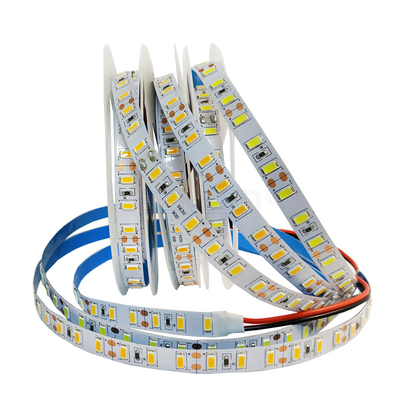

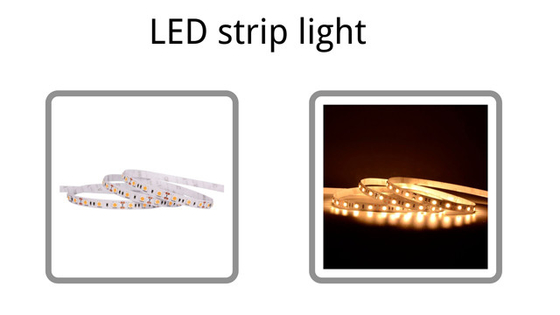

| How long led strip light can make? 5M,50M or any length led strip and roll to roll. |
| What min size components, this machine can do? can mount 0402 components. |
| What patent technology we have? Group to pick and group to mount. |
| How many camera we have? 5 pcs, 2pcs feeder,camera, 2pcs nozzle camera, 1 mark camera |
1.68 feeder station, 68 placement head, 250mm*any length pcb size, vacuum adsorption clamping, cylinder splint clamping, adjustable track width clamping;
2.windows 7system, 6KW power consumption, optical positioning way;
3.0.5mm components space, Group to pick and group to mount mounting mode;
How many main part in pick and place machine? Today, share some parts for you.
-
Read and write modules in the control system - code reader
-
It can accurately determine the coordinate position of the worktable and convert the rotary motion into linear motion- ball screw
-
Convert the pressure energy of compressed air into mechanical energy, and the drive mechanism performs linear reciprocating motion, swinging and rotating motion. - cylinder
-
In a broad sense, it refers to an electrical appliance that uses a coil flowing through a current to generate a magnetic field to close the contacts in order to control the load in industrial electricity.-contactor
Our Company ETON - Top brand in SMT machine
1.Development of history: 2007 to now, we get knds of patent, high-tech enterprise certification. the machine update and update.
2. Why our company is so professonal in smt machine?
1)Over 10 years LED lighting field experience sharing
2)Own R&D department
3)50000 square meters industrial park ensure the brand effect and present company strength.
3.Large market share in the USA, KOREA, INDIA, GERMANY, TURKEY in more than 20 countries. Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt,etc.
4.Professional and kindly service.
5.Eton Purpose: To create value for customers, creating benefits for society.
ETON is your best parner!
