Product Details:
Payment & Shipping Terms:
|
Demension: | 3150*2250*1650mm | Warranty: | 1 Year |
---|---|---|---|
Total Weight: | 2500kg | PCB Thickness: | 0.5-5mm |
System: | Windows 7 | Display: | Touch Screen Monitor |
No,of Camera: | 4 Sets | Mounting Speed: | 90000CPH |

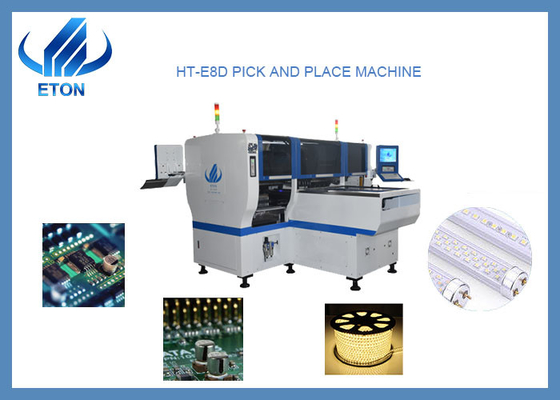

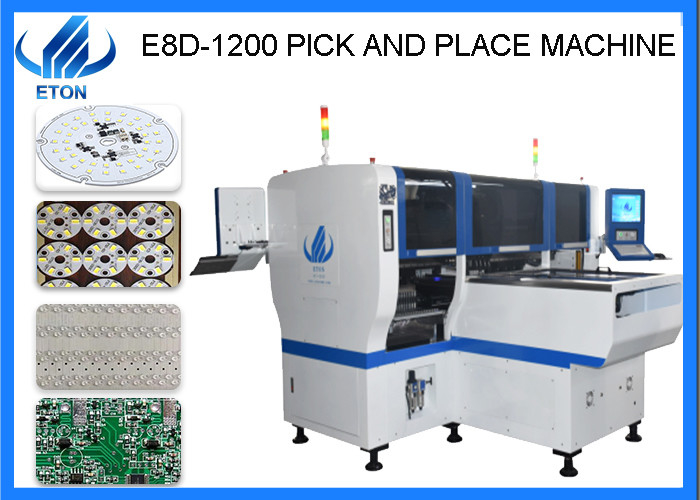

24 Heads Double Module Magnetic Linear Motor Multifunctional Smt Making Machine
Features
Item | E8D |
Dimension | 3150*2250*1650mm |
Total weight | 2500kg |
PCB length width |
Max:1200*300mm Min:100*100mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group picking and separately placing, Separately picking and separately placing |
Mounting height | <15mm(automatic changing) |
Components space | 0.2mm |
No.of feeders station | 48 PCS double module |
No.of head | 24 PCS double module |
Components | LED chip, capacitors, resistors, IC, shaped components, etc. |
Feeding way | Electric feeder with double motor |
Power | 380AC 50HZ 8KW |
Operating environment | 23±3℃ |
Components space | 0.2mm |
Double module magnetic linear motor multifunctional pick and place machine.
Dual system, dual module multifunctional mounter to produce two different products at the same time.
Components : min size 0402 max height 15mm

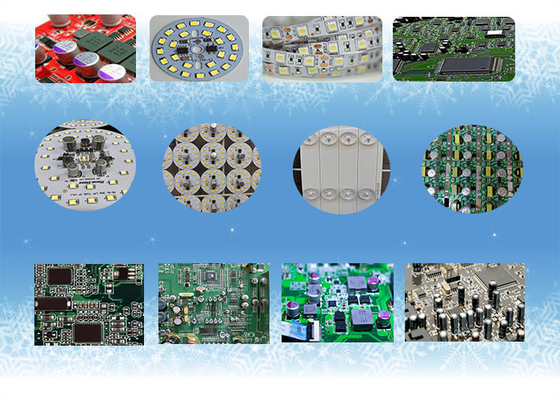

Application: power driver. Electric board. Lens. DOB bulb linear bulb. Household appliance etc.
Vision alignment flight identification, mark correction.
Non-stop material re-loading function.
Auto-optimization after coordinates generated, etc.
SMT Line solution
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Package
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
FAQ
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
How is the transportation?
By sea, by air and land transportation.
Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
