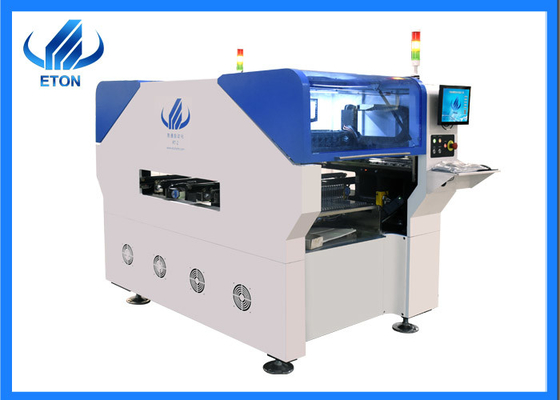

ETON High technology fast speed pcb led bulb production line pcb making machine

ETON High technology fast speed pcb led bulb production line pcb making machine
ETON High technology fast speed pcb led bulb production line pcb making machine

Large Image :  ETON High technology fast speed pcb led bulb production line pcb making machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: RT-2
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units
Price: EXW USD 55000/sets
Packaging Details: Vacuum packing in wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T
Supply Ability: 50 Unit/UNits per month
Contact Now
Detailed Product Description
Dimension (L*W*H): 1200*1930*1500mm Total Weight: 2500kg
PCB Length Width: Max:450*330mm Min:80*80mm PCB Thickness: PCB Thickness
PCB Clamping: Pneumatic No.of Feeders Station: 64 PCS
No.of Head: 20 PCS Mounting Speed: 80000 CPH
Power: AC 380 V Operating Environment: 6 KW

ETON High technology fast speed pcb led bulb production line pcb making machine

Product Description

Auto-optimization feature after coordinates generated
♦Electronic feeder feeding system.
♦Flight identification,Vision camera,Mark correction,more precision
♦It can produce all kinds of LED light,power driver,display etc.
♦IPC9850 Capacity: 80000 CPH

Apply to the SMT machine, PCB,LED hard light board and LED soft lamp strip etc.

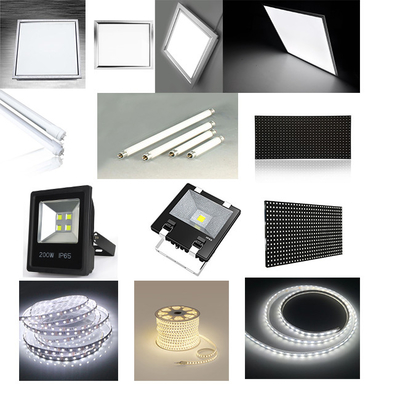

Apply to tube,driver,bulb,strip,lamp,panel,ceiling light,down light,screen,street light,flood light,etc.
Apply to mounting LED,capacitors,resistors,IC,shaped components etc.(intelligent,use widely)
20 nozzles altogether,64 feeders,partA or partB can be mounted separatly. Easy to operate.



Dimension (L*W*H)
1200*1930*1500mm
Total weight
2500kg
PCB Length width
Max:450*330mm Min:80*80mm
PCB thickness
0.1-6mm(If<0.6mm need jig)
PCB clamping
pneumatic
No.of feeders station
64 PCS
No.of head
20 PCS
Mounting speed
80000 CPH
Power
AC 380 V
Operating environment
6 KW



ETON High technology fast speed pcb led bulb production line pcb making machine 0

ETON High technology fast speed pcb led bulb production line pcb making machine 1ETON High technology fast speed pcb led bulb production line pcb making machine 2



ETON High technology fast speed pcb led bulb production line pcb making machine 3



ETON High technology fast speed pcb led bulb production line pcb making machine 4
