Product Details:
Payment & Shipping Terms:
|
| Length: | 1200mm | Width: | 1930mm |
|---|---|---|---|
| Height: | 1500mm | Total Weight: | 2000kg |
| Mounting Speed: | 40000CPH | Power: | AC380V |

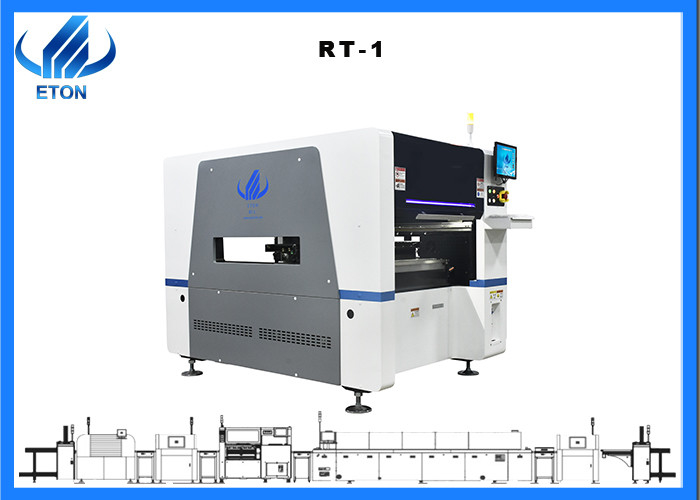

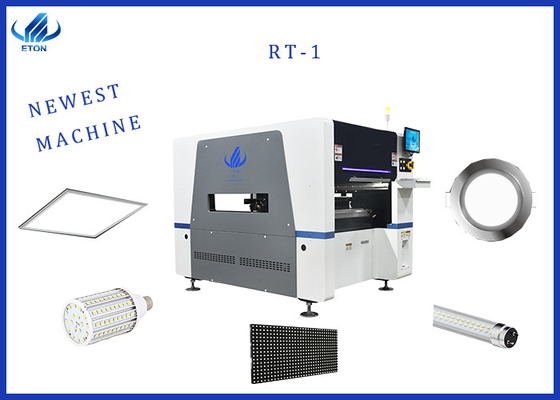

0402 32 feeders LED SMD pick and place machine windows7
Technical parameter
| Model | RT-1 |
| Dimension | |
| Length | 1200mm |
| Width | 1930mm |
| Height | 1500mm |
| Total Weight | 2000kg |
| PCB | |
| PCB Length Width | Max:450*350mm Min:80*80mm |
| PCB Thickness | 0.1-6mm |
| PCB Clamping | Pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 2 PCS |
| Accurate image recognition | |
| Vision alignment, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | ≦15mm |
| Mounting Speed | 40000 CPH |
| Components | LED , capacitors, resistors, shaped components, etc. |
| Components Speed | 0.2mm |
| No. of Feeders Station | 32 PCS |
| No. of nozzles | 10 PCS |
| Power | AC 380V |
| Power Consumption | 4kw |
| Operating Environment | 23℃±3℃ |
| Transmission Speed | ＞1000mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Mode | Online drive |
| Position Mode | Optical |
| Gas consumption | 0.4-0.6mpa (4-6kgf/cm2)600N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor |
| Feeding way | Electric feeder with double motor |

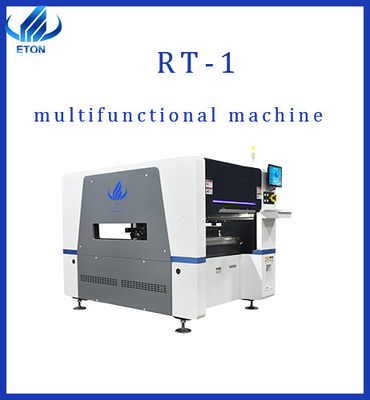

The fetures of RT-1
The maglev linear motor has longer service life and higher precision. The thickness of PCB board is 0.1-6mm. The parts suitable for mounting include LED, capacitor, resistance, IC, special-shaped components, etc. Minimum 0402, maximum 17mm. There are 2 sets of cameras, conventional recognition and high-precision recognition, visual alignment, mark correction, accurate mounting, 10 suction nozzles and 32 heads. The mounting speed per hour is 40000 CPH Electronic Feida feeding system makes feeding faster, automatic optimization function after coordinate generation, etc.
APPLICATION
SMT LINE
SERVICE
Our service can be divided into three parts: pre-sales service, in-sales service and after-sales service:
FAQ
Q: What is the minimum mounting accuracy of your product?
A:Our products can be divided into multi-function machines and special machines. The smallest components that can be attached to each machine are different. If you want to know more, you can contact me through the contact information at the bottom. I will provide you with more information about SMT Mounter.
Q: What is the optimal capacity of your products?
A:The actual product of the mounter in this industry is conservatively estimated to be 60% of the optimal production capacity, but it all depends on the product you want to do, PCB design, component type, component quantity, etc
Q: Why is your product unique?
A: Because our patented technology, practical invention and software copyright are unique, we have obvious advantages in the market.
