ETON high precision multifunctional SMT machine with 45000CPH
Product description

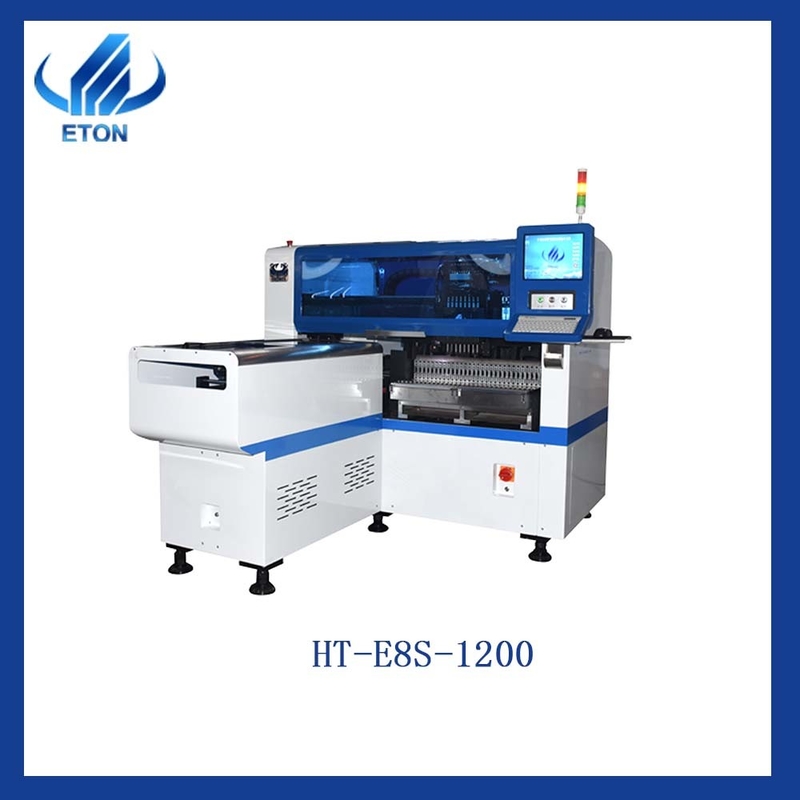

E8S-1200 is single module magnetic linear motor multifunctional pick and place machine.The placement machine is a device used to achieve high-speed and high-precision placement of components.it can produce flexible light,lens,drive,LED tube,streetlight,circuit board.
| Dimension |
2550*1650*1550mm |
| Weight |
1700kg |
| PCB length width |
1200*500mm 100*100mm |
| PCB thickness |
0.5~5mm |
| PCB clamping |
pneumatic |
| Mounting mode |
group picking and separately placing,separately picking and separately placing |
| NO.of camera |
2 PCS |
| Mounting precision |
±0.04mm |
| Mounting speed |
CPH |
| NO.of feeders station |
64PCS |
Main features
With lamp beads, lenses, capacitors, resistors, ICs, terminals, inductors, coils, diodes, triodes, rectifiers, transformers (Minimum placement of 0402 components, maximum placement range: 15mm).Meet the needs of most clients for mounting components.
- speed can reach 45000PCH with 12 heads.
- X ,Y, Z axis drive mode is high-end magnetic levitation motor and servo motor.
- Automatic optimization coordinates generated.
Product line
You can ask us what kind of production line is the most suitable for you, we will try our best to make a production line that suits you, and help you save cost and land area as much as possible.
Company profile
Shenzhen ETON Automation Equipment Co., Ltd.It has a 14-year history of researching the pick and place machine industry.It plays a pivotal role in leading the development of placement machines in China.
FAQ
1. What kind of nozzle is the machine?
A:Multi function machines are generally made of alloy and ceramics, and special machines are generally made of steel and copper
2:Can we visit the your workshop?
A:If you want to visit the workshop and it's inconvenient for you to come, we can let you visit through video.
3. The mounter is hard to operation?
A:NO,most customers just by 5 days
