High Quality Economic A Variety Of Products Mounted Pick And Place Machine 45000CPH
Production Introduction of Pick and Place Machine HT-E8S
1. Single module magnetic linear motor multifunctional pick and place machine.
2. Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
3. Component: Min. Size 0402 Max. Height 15mm.
4. Application: Power driver,electric board,lens,DOB bulb,linear bulb,household appliance etc.
Exclusive patent technology
- Electric feeder feeding system.
- Vision alignment flight identification, Mark correction.
- Non-stop material re-loading function
- Auto-optimization after coordinates generated, etc.
HT-E8S of Technical Parameter
| Dimension |
2550*1650*1550mm |
| PCB Size |
Max: 1200*500mm Min: 100*100mm |
| PCB Thickness |
0.5~5mm |
| Mounting mode |
Group picking and separately placing,separately picking and separately placing |
| Mounting precision |
±0.04mm |
| Mounting height |
<15mm (Automatic changing) |
| Mounting speed |
45000 CPH |
| Components |
LED chip,resistors,capacitors,IC,shaped components etc. |
| Components space |
0.2mm |
| No.of feeders station |
28 PCS |
| No.of head |
12 PCS |
| Power |
380AC 50Hz |
| Power consumption |
4 KW |
| X,Y,Z Axis drive way |
High-end magnetic linear motor and servo motor |

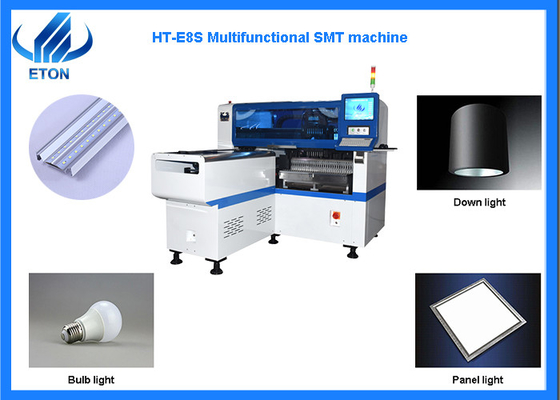

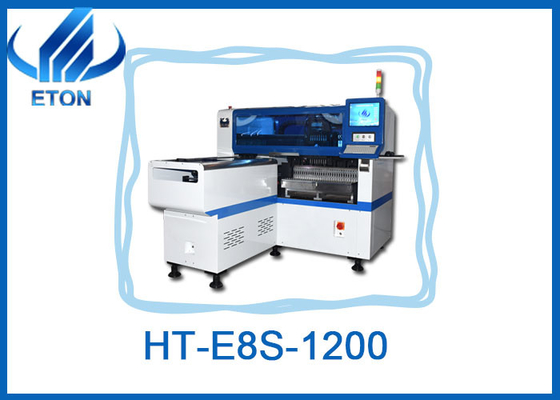

HT-E8S Picture

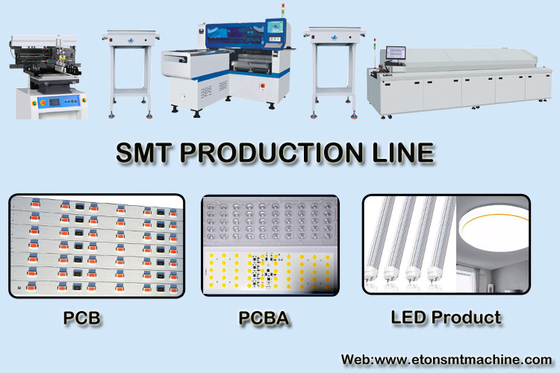

Application of HT-E8S
Apply to tube,driver,bulb,strip,lamp,panel,ceiling light,down light,screen,street light,etc.
Apply to mounting LED,capacitors,resistors,IC,shaped components etc.
Introduction of Exhibition
Our company go to many places to participate in the exhibition.
Foreign exhibition: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai electronica Exhibition, Chongqing LED Light Exhibition,etc.
Package and delivery of Pick and Place Machine
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our after-sales service of Pick and Place Machine
FAQ
Q: If my order is very urgent, how long you can proceed?
A: We have helped many clients with their urgent demand. If your order is urgent, please contact with our specialist and we will help you to apply special support.
Q:What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: Is your software interface in English?
A: English interface and Chinese interface are both available.
Q: It’s hard to use the machine?
A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Q: How is the installation and training?
A: After buying our machines,our engineer will visit to your factory installation and training for free.
