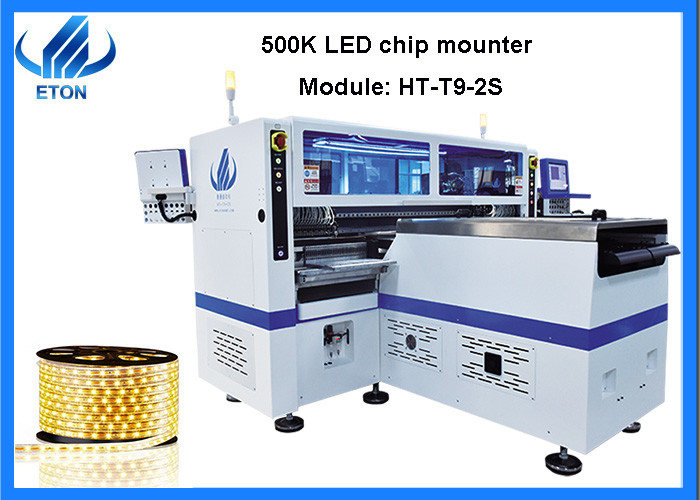

500K chip per hour led strip light pick and place machine

500K chip per hour led strip light pick and place machine
500K chip per hour led strip light pick and place machine

Large Image :  500K chip per hour led strip light pick and place machine

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-T9-2S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden package
Supply Ability: 50 sets per month
Detailed Product Description
Machine Name: Strip Light Making Machine/SMT Machine / Pick And Place Machine/ Mounter Machine Speed: 500000 Cph
Mounting Heads: 136 Pcs Repeat Precision: ±0.05 Mm
Power: 360AC 50HZ Power Consumption: 9.6KW

500K chip per hour led strip light pick and place machine



Machine features



1. High-speed modular head, T9-2S total 136 PCS mounting head, mounting speed could be reach 500k chip per hour , it is the fastest mounting machine in all over the world.

2. HT-T9-2S is professional design for roll to roll led strip light, 5M/15M/25M/50M/100 flexible strip lamp

3.HT-T9-2S is Double rail, Four group of placement heads

4. One machine is save much cost than Two machines with same mounting speed, also save labor, machine space, etc

5.ETON Tech Adjustable placement head, component picking position can be adjusted according to PCB pad pitch, mini 6.5mm.

6. Unique Design component Leaking Detection And Individual Component Refill Function



Machine parameter



SMD Components apply to mounting 3014/3020/2835/5050 resistor, capacitor, bridge rectifier etc.
Camera Vision alignment, Mark correction, Using flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors
PCB Size 250 mm*Any length
PCB Thickness 0.1-0.5mm
PCB Clamping Vacuum adsorption, cylinder clamping, track width adjustable
Mounting way Group picking and group placing
Repeat precision ±0.05 mm
Mounting height ≤5mm
Mounting speed 500000 CPH
Power 360AC 50HZ
Power consumption 9.6KW
Feeding way Intelligent electric feeder with double motor



Application



HT-T9-2S applied to all kinds of led strip light:

Low voltage: 5M/15m RGB Color light

High voltage: 25M/50M/100M RGB Color light

500K chip per hour led strip light pick and place machine 0



FAQ



1. What is the price ?

A: Please contact us directly for the machine price!



2.Could I pay by LC?

A: Yes, but we need at least 50% TT , and the type is LC at sign



3. What is your machine software ?

A: ETON machine software is R&D by ourselves, support whole life free upgrade



4. Do you have client in India ? Could I visit your India client factory ?

A: Yes, we have India client, and if you want to visit our Client factory, we will arrange with that and feedback you!



Welcome contact us for more machine details!

ETON will provide free machine install and training for you !
