Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2700*2300*1550mm | PCB Size: | Max: 1200*330mm Min: 100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5-5mm | Mounting Mode: | Group Picking And Group Placing |
| Mounting Precision: | ±0.02mm (Repeat Precision） | Mounting Height: | ≤5mm |
| Mounting Speed: | 150000-180000 CPH | No.of Feeders Station: | 68 PCS |
| No.of Head: | 34 PCS | Power: | 380AC 50Hz |
| Power Consumption: | 6 KW | X,Y,Z Axis Drive Way: | High-end Magnetic Linear Motor And Servo Motor |
| High Light: | SMT Mounting Machine 68 Feeder,SMT Mounting Machine 150000 CPH,50Hz Pick Place Machine |
||
68 Feeders SMT Mounting Machine Pick And Place 150000 CPH 380AC 50Hz
Description of Pick and Place Machine HT-F7S
1. Dual-arm professional highspeed mounter, 2~4 type of materials capacity reach 18000 CPH
2. Apply to the 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light, available for board with any propotion of LED chip and resistor.
3. Two mounting modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
4. Calibration automatically, high precision, available for RGB.
5. Exclusive patent technology: Group to take and group to mount.
HT-F7S of Technical Parameter
| Dimension | 2700*2300*1550mm |
| PCB Size |
Max:1200*330mm
Min:100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting mode | Group picking and group placing |
| Mounting precision | ±0.02mm |
| Mounting height | ≤5mm |
| Mounting speed | 150000-180000 CPH |
| Components | LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers etc. |
| Components space | 0.5mm |
| No.of feeders station | 68 PCS |
| No.of head | 34 PCS |
| Power | 380AC 50Hz |
| Power consumption | 6KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

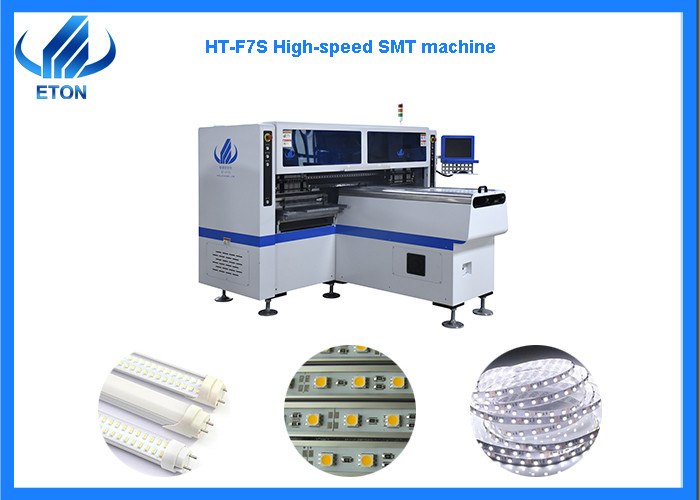

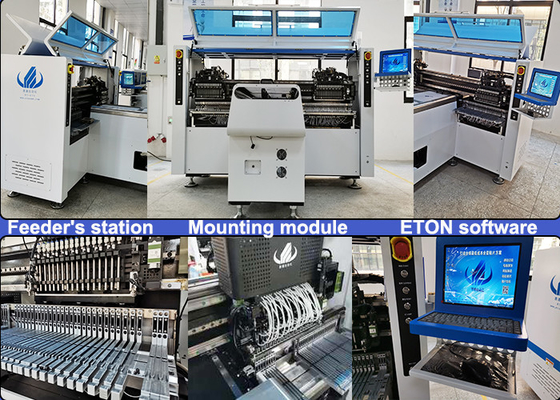

HT-F7S Picture
Application of HT-F7S
Apply to the tube light, 0.6M,0.9M,1.2M rigid PCB and 0.5M,1M LED flexible strip light etc.
HT-F7S semi-automatic production line
Company Introduction
Rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
Our machines are of better quality, more accurate and faster to mount. We also have our own exclusive patented technology such as dual motor electronic Feeder feeding system, flight identification visual alignment, group picking and group placing and so on.
Certification
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.
Package and Delivery of Pick and Place Machine
Filming packing:Make the machine sanitary, clean, sealed packaging, dust and humidity; have good shock resistance, impact resistance, and good protection performance with tightness and fixity.
vacuum packing:Advantages of moisture proof,dust proof and so on.
wooden packing: It has good cushioning performance, corrosion resistance, high strength and hygroscopicity, moisture-proof and earthquake-resistant functions.
Our after-sales service of Pick and Place Machine
FAQ
Q: Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
Q: What are your advantages?
A: Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q: If my order is very urgent, how long you can proceed?
A: We have helped many clients with their urgent demand. If your order is urgent, please contact with our specialist and we will help you to apply special support.
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q: What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
