Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles

Name: Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles
Brand: ETON
SKU: HT-F7S
Rating: 4.5 (134 reviews)

Large Image : Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC/CE/SIRA
Model Number:	HT-F7S

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	vacuum packaging and wooden cases
Delivery Time:	5~8 work days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Warranty:	1 Year	Name:	SMT Pick And Place Machine
Application:	SMT Production Line	Power Supply:	380AV 50HZ
Weight:	1700kg	Mounting Speed:	180000-150000 CPH
Type:	Automatic	Usage:	SMT Mounting Machine
Dimension:	270023001550mm	Feeders:	68PCS
Pcb Thickness:	0.5~5mm
High Light:	flexible lights SMT mounter machine , SMT mounter machine dual arms

SMT mounter machine flexible light dual-arm with 34 nozzles

Product discription

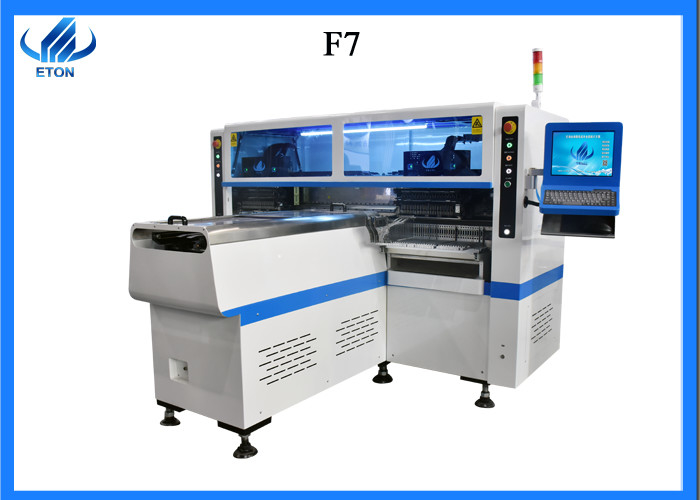

F7S is a high-speed placement machine, it has 5 sets of cameras which is nozzle debugging camera, feeder debugging camera and MARK camera. Can better guarantee the quality of the patch products.

Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles 0

Dimension	270023001550mm
Total weight	1700kg
PCB Length width	1200330mm 100100mm
No.of camera	5PCS
Mounting precision	±0.02mm
Mounting speed	180000~150000CPH
Components space	0.2mm
No.of head	34pcs
No.of feeders station	68Ppcs
Feeding way	electric feeder with double motor

Main feature

The speed can reach 180000CPH to 150000CPH.
Suitable for mounting flexible light strips and tubes, and also for mounting RGB.
It can produce 2 to 4 materials at the same time without affecting the production capacity.
The X,Y,Z axis drive method adopts high-end magnetic linear motor and servo motor, which has the characteristics of fast feedback, quietness, easy maintenance and high precision.
Exclusive patent: group picking group placing

Company profile

Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles 1

Packaging

Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles 2

Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles 3

Flexible Light SMT Mounter Machine Dual Arm With 34 Nozzles 4

FAQ

1.Which service you can offer for me?

The warranty period of the whole machine is 1 year.
Visit customers regularly and gather information .
Provide latest information about technology and equipment.

2. How long you can deliver the goods?

A:30% down payment,70% payment before delivery.

3. What kind of nozzle is the machine?

A:Multi function machines are generally made of alloy and ceramics, and special machines are generally made of steel and copper.
