Any Length Flexible Strip SMT Mounting Machine 6KW 250000CPH 0.5mm Components
Production Introduction of Pick and Place Machine HT-T9
Dual-arm magnetic linear high-speed mounter for flexible strip(no wire), Producing 4 types materials at the same time capacity reach 250000 CPH.
Exclusive patent technology: Group to take and group to mount.
Calibration automatically, high precision, available for RGB.
Available for 5M, 50M or any length of flexible strip and Roll to Roll.
Dual arm four modules, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Keywords:
led tube light making machine
led flexible strip light making machine
led machine manufacturer
led high speed making machine
led dual arm four module making machine
HT-T9 of Technical Parameter
Dimension | 3100*2300*1550mm |
PCB Size | 250*any length |
PCB Thickness | 0.5~5mm |
Mounting mode | Group to take and group to mount |
Mounting precision | ±0.02mm (Repeat precision) |
Mounting height | Standard:≤5mm |
Mounting speed | 200000~250000 CPH |
Components |
LED 3014/3020/3528/5050 and resistors, capacitors,bridge rectifiers etc. |
Components space | 0.5mm |
No.of feeders station | 68 PCS |
No.of head | 68 PCS |
Power | AC 380V 50Hz |
Power consumption | 6 KW |
X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

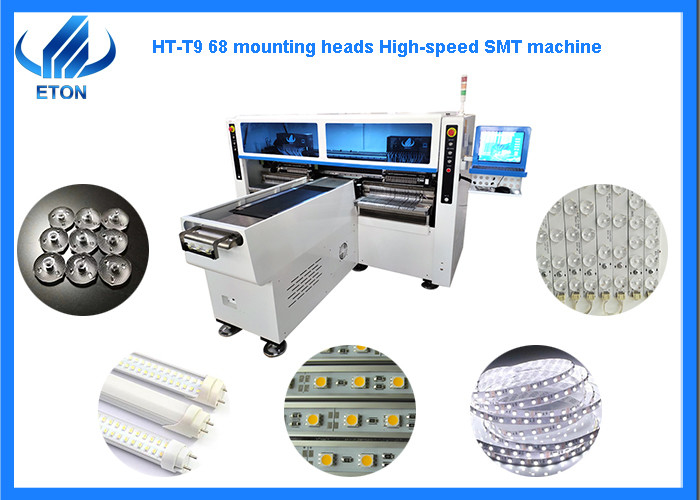

HT-T9 Picture
Application of HT-T9
Apply to 5M, 25M,50M or any length of flexible strip and Roll to Roll.
The semi-automatic production line
PCB Loader, conveyor, transplanting machine, buffer frame, semi-automatic printing machine, pick and place machine, belt transport guide rail, reflow oven, PCB Un-loader.
The full-automatic production line
PCB Loader, conveyor, transplanting machine, buffer frame, automatic printing machine, pick and place machine, belt transport guide rail, reflow oven, PCB Un-loader.
Production craft Introduction
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.Reflow oven: Melt the solder paste and fix it to the mounting element.
Conveyor: Inspect the quality of assembly and welding to cushion the production line.
