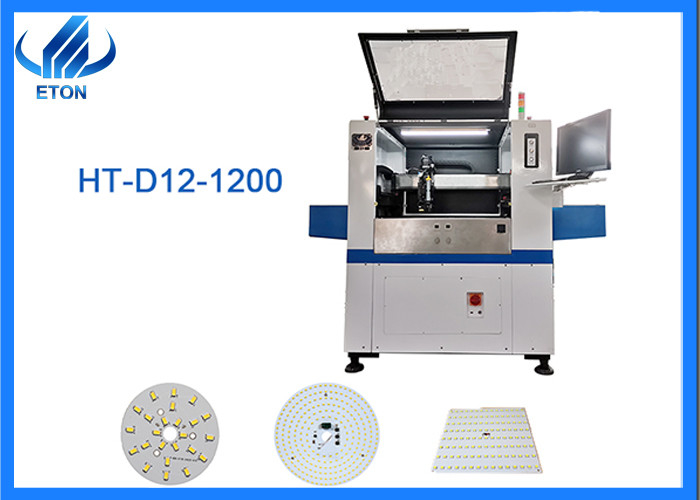

LED light Full automatic SMT LED bulb SMT glue dispenser machine
The features
1. English interface option, easy to operate
2. CCD positioning system, visual positioning compensation automatically, correct the deviation of PCB
3. Large size track, suitable for different size of PCB
4. Contactless high speed injection dispensing head, dispensing glue continously with high efficiency
5. Intelligent dispensing head ensure good performance, high efficiency and lower glue wasting
6. Full time monitoring of glue volume, auto-prompting low glue volume
7. Dispensing head constant temperature function, ensure the glue in liquid
The technical parameter
| Model |
HT-D12-1200 |
| Dimension |
| Length |
1800mm |
| Width |
1050mm |
| Height |
1550mm |
| Total weight |
800Kg |
| PCB |
| Max PCB size |
1200*500mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Dispensing mode |
Pneumatic injection value |
| Vision system |
| No.of camera |
1 set industrial camera |
| Dispensing accuracy |
0.1mm |
| Heating temperature |
200°C |
| Dispensing height |
< 15mm |
| Dispensing speed |
90000 CPH |
| Power |
220AC 50Hz |
| Power consumption |
1.5KW |
| Operating environment |
23°C±2°C |
| Drive way |
magnetic linear motor drive |
| Max running speed |
1200mm/sec |
| Transmission direction |
Single(left right or right-left) |
| Transmission way |
Online drive |
| Gas consumption |
0.4-0.6mpa (4-6 kgf / cm2) 150N/min |
| Electrical control |
Independent research and development by ETON |
| 1 Set motion control card |
Independent research and development by ETON |
Company introduction
ETON was founded in 2011. Jiangxi intelligent manufacturing Park was completed in 202. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation.
More than 11 years experience
Exported to more than 20 countries and regions
Obtain a number of intellectual property technologies
China high-tech enterprise
The 4th China LED First Innovation Award
FAQ:
1. What the language of the machine?
Our equipment has both Chinese and English versions.
2. Why you choose ETON?
ETON has more than 11 years experience. ETON is in the leading position in the field of pick and place machine and commit to continuously providing the market with products and services that are “ more intelligent, more professional, more efficient, and lower consumption”.
3. what about the after sales?
We provide 1 year after sales service.
4. Is there any other equipment besides the mounter machine?
We have a complete SMT line of machine, such as solder paste printer machine, conveyor, reflow oven. We also offer customization.
5. Is The operating software reliable?
Yes, of course. Our software is R&D independently by ourselves.
