Product Details:
Payment & Shipping Terms:
|
| Length: | 1800mm | Width: | 1050mm |
|---|---|---|---|
| Height: | 1550mm | Total Weight: | 800kg |
| Dispensing Height: | <15mm | Dispensing Speed: | 90000CPH |
| High Light: | LED Light Automatic glue dispenser machine,CCD Positioning Automatic glue dispenser machine,Automatic glue dispenser 90000CPH |
||

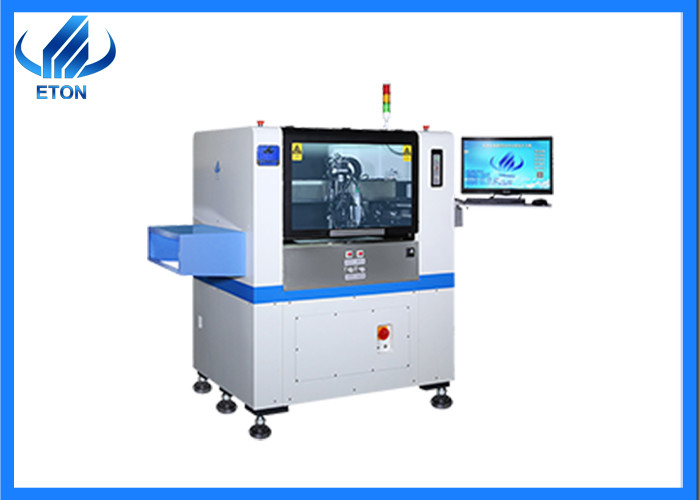

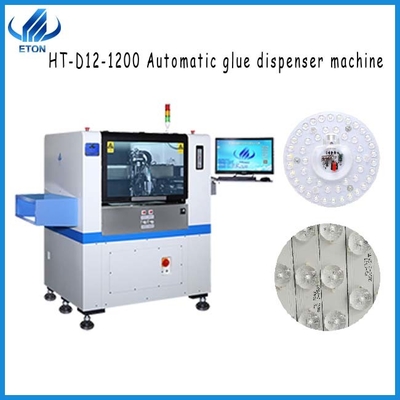

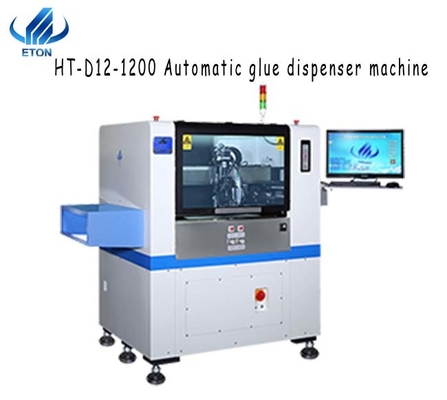

CCD Positioning system High speed LED light Automatic glue dispenser machine
Machine Features
| Model | HT-D12-1200 |
| Dimension | |
| Length | 1800mm |
| Width | 1050mm |
| Height | 1550mm |
| Total Weight | 800kg |
| PCB | |
| Max PCB size | 1200*500mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Dispensing mode | Pneumatic injection value |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | LED monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 1 set industrial camera |
| Dispensing accuracy | 0.1mm |
| Heating temperature | 200℃ |
| Dispensing height | <15mm |
| Dispensing speed | 90000CPH |
| Power | 220AC 50HZ |
| Power Consumption | 1.5kw |
| Operating Environment |
23℃±2℃ |
| Drive way | Magnetic linear motor drive |
| Max running Speed | 1200mm/sec |
| Transmission Direction | Single(left→ right or right→ left) |
| Transmission Way | Online drive |
| Gas consumption | 0.4-0.6mpa(4-6 kgf/cm2)150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
Company profile
ETON is not only in the leading position in the field of photoelectric high-speed mounter, but also has made a breakthrough in the field of SMT high-speed mounter. It has successfully developed a number of high-cost SMT high-speed universal mounter. Its products are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries.
What is a dispensing machine
Dispensing machine, also known as glue dispenser, glue dispenser, glue applicator, automatic dispensing machine, etc., specializes in the operation of fluid. The automatic technology equipment that drips and applies the fluid on the product surface or inside the product can complete the three-dimensional and four-dimensional automatic dispensing machine, with accurate positioning and precise glue control, no metal wire drawing, no glue leakage and no crystal glue dropping. The dispensing machine is mainly used to accurately point, inject, apply and drip the strong glue, paint and other liquids in the product processing process to each precise part of the product, and can be used to complete threading, scribing, circle or arc.
Cleaning method of dispensing machine
1. Traditional cleaning method. Use volatile solvents such as dichloromethane and DMF to clean the mixing head. This method of cleaning is relatively thorough and the cost is not high But its biggest disadvantage is to pollute the environment Because it is a chemical product, volatile and toxic, and it is not recyclable, which is inconsistent with the advocated trend of green environmental protection, its use is limited, it is gradually not accepted by the market, and it is gradually eliminated.
2. High pressure water cleaning. Although this method is non-toxic, low cost and easy to operate, there is a common problem of incomplete cleaning in the industry. At the same time, high-pressure water cleaning will cause a waste of water resources and produce a large amount of industrial wastewater, which is not the best cleaning method.
3. Clean with recyclable environmental protection solvent. From the perspective of society, this method is the most advocated. It is environmentally friendly, recyclable and has good cleaning effect.
FAQ
Q:Does the price include the spare parts(feeder and nozzle)?
A:Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
Q:What’s the minimum quantity of an order for your company?
A:1 set machine are welcomed to order, mixed orders are also welcomed.
Q:This is the first time I use this kind of machine, is it easy to operate?
A:It is easy to operate, the language of the machine is English, and we will teach you the basic operation.
If you still have any questions, please contact us by e-mail, WeChat, phone, Skype or other contact information.
Q:Can you provide a whole line solution?
A:Yes, we can, we can supply SMT line and some LED production lines.
Q:Can we customize the machine?
A:Of course, all of our machines can be customize.
