Fullautomatic high precision vision stencil printer high speed
Production introduction

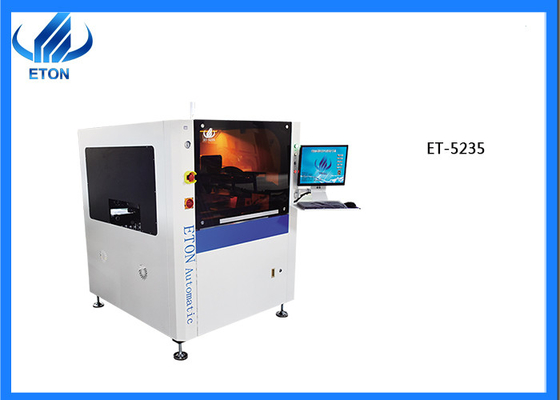

ET - 5235 is programmable suspended from the debug print head, stepping motor drive, and is embedded scale, never fall off. High precision, long service life.
| Screen frames |
Max:737mm Min:470 mm Thickness:25~40mm |
| PCB size |
520x350mm /Min: 50x50mm |
| PCB thickness |
0.6 〜6mm |
| Transport speed |
Max 1200mm/s Programmable |
| Print head |
Two independent direct-connect motor-driven printheads |
| Squeegee type |
Steel scraper(Standard),PV scraper(Option |
| Cleaning system |
Dry,Wet,Vacuum (Programmable) |
| Printing accuracy |
± 0.025mm |
| Dimension |
1240(L) x 1450(W) x 1650(H)mm |
| Weight |
Approx:700kg |
Main features
• Unique crafted internal gear conveyor belt to prevent jamming
• The size of steel mesh is universal, with good and wide applicability
• Cast aluminum scraper beam to ensure smoother running of scraper
• Make program files with teaching and navigation functions, with prompts for each step
• One-key switch between Chinese and English, with operation log, fault record analysis and diagnosis and other functions.
• X, Y axis adopts high-precision grinding ball screw, driven by servo motors at both side
Detailed description
Company profile
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011. ETON is the first brand of placement machines in China and a leader in the placement machine industry in China. SMT high-speed placement machine and SMT peripheral automation equipment in Shenzhen, Guangdong Province
FAQ
You can provide a fully automatic printing machine production line?
Yes, we can according to your request to provide production line, can also provide all the machines in production line.
What service you can provide us?
Free software update
The machine warranty for one year
Provide custom
Free installation and training
