Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Application: | SMT Production Line |
|---|---|---|---|
| Condition: | Brand-new | Weight: | 700kg |
| Dimension: | 1240(L) X 1450(W) X 1650(H)mm | Cleaning System: | Dry、Wet、Vacuum (Programmable) |
| Printing Accuracy: | 0.025mm | Screen Frames: | Max:737mm Min:470 Mm Thickness:25~40mm |
| PCB Thickness: | 0.6 〜6mm | Print Head: | Two Independent Direct-connect Motor-driven Printheads |
| High Light: | Automatic Programmable stencil printer machine,0.025mm stencil printer machine,smoothness automatic stencil printer machine |
||

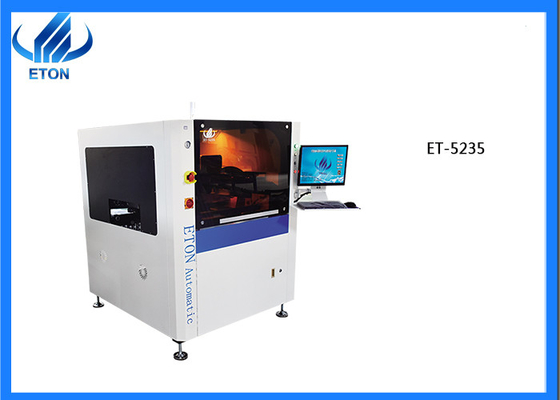

New automatic high precision vision stencil printer machine
ET5235 is our company's latest fully automatic printing machine. It has completely new changes in PCB transportation and positioning system, stencil positioning system, squeegee system and operating system.
| Screen frames | Max:737mm Min:470 mm Thickness:25~40mm |
| PCB size | 520x350mm /Min: 50x50mm |
| PCB thickness | 0.6 〜6mm |
| Transport speed | Max 1200mm/s Programmable |
| Print head | Two independent direct-connect motor-driven printheads |
| Squeegee type | Steel scraper(Standard),PV scraper(Option |
| Cleaning system | Dry,Wet,Vacuum (Programmable) |
| Printing accuracy | ± 0.025mm |
| Dimension | 1240(L) x 1450(W) x 1650(H)mm |
| Weight | Approx:700kg |
X, Y axis adopts high-precision grinding ball screw, driven by servo motors at both side
The polarizer is added inside, and the MARK of different shapes is automatically and accurately grasped, and the upper, lower and coaxial three-way uniform light sources
Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing
The optimally designed module drive structure effectively improves the stability of the platform calibration, and realizes ultra-small transmission under fine-tuning, so that the machine can meet the printing requirements of higher precision.The structure is simple and reliable, the adjustment is convenient, and the height adjustment of the support PIN of the PCB board with different thicknesses can be quickly realized.
First step:Using film packaging
Second step:vacuum packing
Last step:Wooden box
1:Are you a factory or trading company?
A:We are a professional manufacturer of mounter.And we have our own brand mounter production line.
2:Do you provide installation service?
A:We have engineer in India, Turkey, Egypt.
3:What is your delivery date?
A:The delivery date is about 20 days upon the full payment.
4.Why we choose you company?
A:ETON has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
