Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Dimension: | 2550*1650*1550mm |
|---|---|---|---|
| Weight: | 1700kg | No.of Camera: | 2 Sets Of Imported Camera |
| No. Of Head: | 12 Pcs | No. Of Feeder Station: | 28 Pcs |
| Mounting Speed: | 45000 CPH | Mounting Precision: | ±0.04 Mm |
| Power Consumption: | 4 KW | Operating Environment: | 23℃±3℃ |
| High Light: | 0.04mm SMT pick and place machine,4 KW SMT pick and place machine,LED Lighting SMT Mounting Machine |
||
led lighting adjustable pressure pneumatic SMT machine pick and place machine
The features

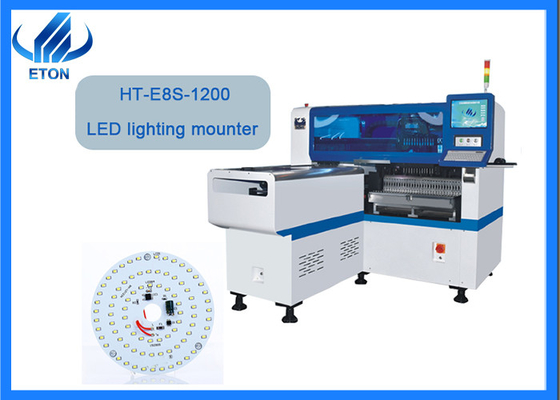

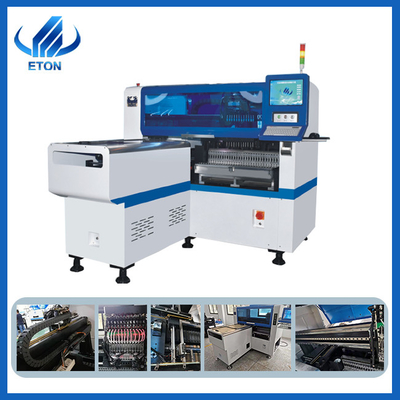

1. The biggest feature of HT-E8S-1200 single module is that it is suitable for a variety of products.,12 PCS of heads, 28 PCS of feeders station with mounting speeds up to 45000 CPH. Not only can mount LED bulbs, street light, table light, down lights, power driver, electric board, lens and so on, but also display screens and linear products, such as LED tube, flexible strip.
2. The exclusive patented technology includes: electronic feeder feeding system, vision alignment flight identification, mark correction, non-stop material re-loading function,auto-optimization after coordinates generated.
The technical parameter
| 2550mm*1650mm*1550mm | |
| Total weight | 1700kg |
| PCB Length width | 1200*500mm-100*100mm |
| PCB Thickness | 0.5-5mm |
| Feeding way | Electric feeder with double motor |
| Mounting precision | ±0.04mm |
| Conveyor transmission | Max length: 1200mm |
| Transmission speed | ≤1000mm/sec |
| Component space | 0.2mm |
| Component height | <15mm ( Automatic changing) |
| Transmission direction | Both direction (Option ) |
| No. Of feeders station | 28PCS Single module |
| No. Of head | 12PCS Single module |
| Operating environment | 23℃±3℃ |
| Power consumption | 4KW |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
The production line and SMT related equipment
HT-E8S-1200, thinking the cost and other factor, we will recommend the semi automatic SMT production line, including semi-automatic stencil printer, 1.4 M conveyor, pick and place machine, 8 zones reflow oven.
Quality control and service
We have perfect and strict quality control process. From design a diagram to put storage / shipment, every step is strict control, to ensure the quality of equipment.
We also have excellent after-sales service ( One year warranty period, visit customers regularly and gather information, provide latest information about technology and equipment ), keep to the concept of " no worries " after-sales service.
FAQ
1. What the main components that pick and place machine can mount?
It is available for all kinds of components, including LED chip, resistors, capacitors, IC,shaped component and so on.
2. How about the operating software?
software is researching and developing independently by our own.
3. Do you provide personal customization?
Yes, we provide personal customization. My dear clients can contact the sales specialist to customize the equipment what you need.
4. How about your company?
ETON was founded in 2011, and has more than 11 years experience. In addition, ETON has obtained a number of intellectual property technologies. The products are exported to more than 20 countries and regions.
