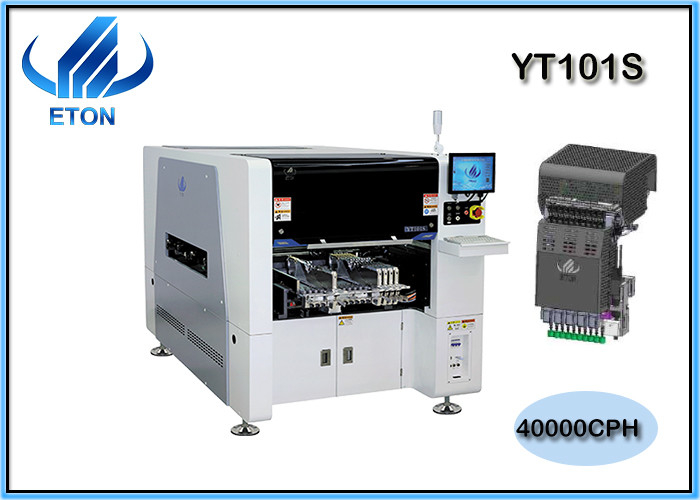

High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED

Large Image : High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC/CE/SIRA
Model Number:	YT101S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	wooden box with vacuum package
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Dimention:	215413761762	Total Weight:	1700kg
PCB Length Width:	Max：500mm350mm Min：5050mm	PCB Thickness:	0.5-4.5mm
System:	Windows 7	Software:	R&D Indepentently
No.of Camera:	2pcs	Mounting Speed:	40000CPH
Components:	0201-10MM Packages And IC Etc.	Electrical Control:	Indepentent Research And Development By Eton.
Highlight:	CCC LED bulb pick and place machine , win7 LED bulb pick and place machine , automatic led bulb and smt pick and place machine

HIGH-SPEED 0201-40*40mm high precision pick and place machine

How smt manufacturers choose the right placement machine?

SMT chip processing manufacturers will encounter a variety of circuit boards. There are various resistors, capacitors, ICs, etc. in the circuit board. When purchasing a placement machine, we must pay attention to the accuracy of the placement machine, and There are many types of components in the circuit board, so pay attention to how many material stations can be placed. When choosing a placement machine, it is necessary to detect some of its main performance indicators

Production Introduction

Adopt High-end magnetic linear motor,servo system and multi function modular head,the capacity increased by 25% compared with traditional machine,optimum placement speed reach 40000 CPH.

MACHINE HIGHLIGHTS

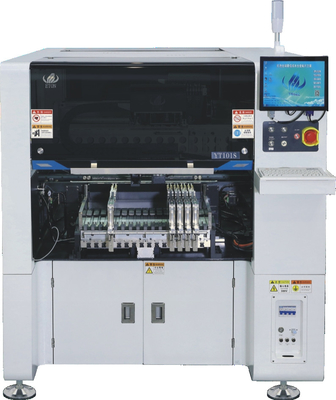

High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED 0

High-speed Multi Modular Head- Adopt High-speed multi modular head,apply to ultra small chip 0201<~40*40mm large Chip,wider component range.
Brand New Flight Vision Camera- Improve recognition performance,size up to 40mm*40mm,apply to BGA or CSP etc
Vacuum Sensing Device - Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.

Mounting speed	40000CPH (Optimum speed)
Components range	Min 0201 ~40M0mm packages and IC etc.
Power	380AC 50HZ 4KW
Operating environment	23°C±3°C
Transmission direction	Single (left—>right or right—Heft)
Transmission mode	Online drive
Position mode	Optical
consumption	0.4-0.6mpa (4-6kgf/cm2) 150N/min
Electrical control	Independent research and development by ETON
Motion control card module 1 set	Independent research and development by ETON
X,Y,Z Axis drive way	High-end magnetic linear motor + Servo motor
No. of Feeder station	Stations 6pcs,Tape reel packages 32pcs)
No. of Heads	10pcs
Feeding way	Intelligent Double head Feeder

Details for product

Placement head

Components with size less than 40 * 40mm or height less than 20mm can be used to high-speed.

Intelligent Electric Feeder

Support YT series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component.

Why choose us

Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011.

1) Over 10 years experience in SMT machine. ensure to solution the customer’s questions. Always provide best support to you!

2) Own Industry Park over 50000 square meters. Support customization: OEM/ODM. Sometimes the machine is in stock. if you pay and we get the payment, we can arrange delivery immediately.

3) Quality is guaranteed: We got 9 invention Patents, 112 practical patents, 12 software copyrights.

4) Provide SMT whole line solution, based on customer’s factory layout, requirement, product, etc.

5) Best service: Free technical training,free installation,free technical support, free upgrade whole lifetime. One year for warranty,Two regular visits customer one year.

6) Local engineer in India(Delhi, Mumbai and Daman),Egypt and Turkey, which can provide you with the greatest convenience. High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED 3

High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED 4

Exhibition

Our company participates in exhibitions every year, both at home and abroad, such as: India, Turkey, Egypt, Istanbul,etc.

High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED 5

High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED 6

Customer's feedback

ETON machines are not cheap, but really good. buy from ETON!!!

High Precision LED Bulb Pick And Place Machine 40x40mm HIGH SPEED 7

Find me on Whatsapp: +86 19880662073 and let's discuss more. Thank you
