Product Details:
Payment & Shipping Terms:
|
Dimension: | 3150*2250*1650mm | Weight: | 2500kg |
---|---|---|---|
PCB Length Width: | Max:1200*300mm Min: 100*100mm | PCB Clamping: | Adjustable Pressure Pneumatic |
PCB Thickness: | 0.5-5mm | Mounting Mode: | Group/separately Picking And Separately Placing |
No.of Camera: | 4 Sets | Software: | R&D Independently |
High Light: | Display SMT pick and place machine,Adjustable SMT pick and place machine |

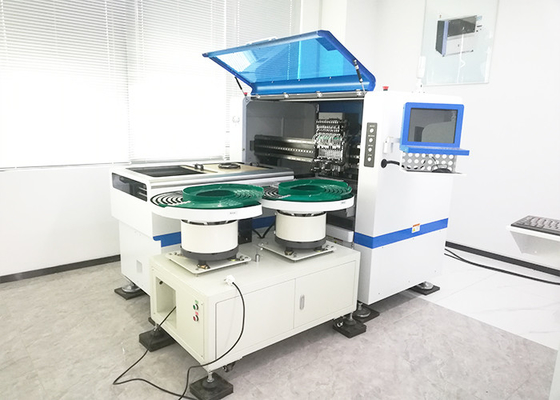

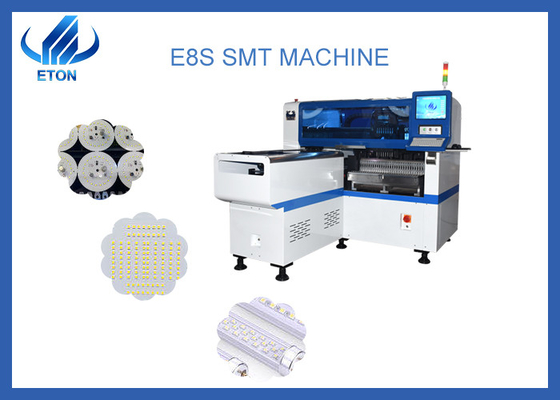

good quality SMT pick and place machine for display and tube with 3150mm
Technical parameter

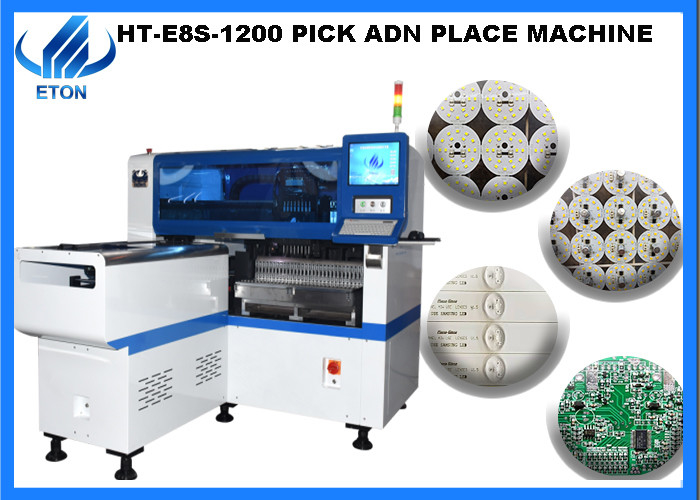

E8S-1200 | |
Dimension | 2550*1650*1550mm |
Total weight | 1700kg |
PCB thickness | 0.5-5mm |
Mounting speed | 45000CPH |
Mounting mode | Group picking and separately placing, separately picking and separately placing |
No.of camera | 2 sets |
No.of feeder | 28 PCS single module |
No.of head | 12 PCS single module |
Feeding way | Electric feeder with double motor |
Features
Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
Component: Min. Size 0402 Max. height 15mm.
Application: Power driver. Electric board. Lens.DOB bulb. Linear bulb. Household appliance etc.
Electronic feeder feeding system
Vision alignment flight identification, Mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated, etc.
It has 28 PCS single module feeders station.
Its speed can reach 45000CPH.
About exhibition
Foreign exhibition
India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Domestic exhibition
Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.
Package
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Shipping Way:
※ By air, for sample and small package
※ By sea, for large package and quantity;
※ Other ways as customer requested.
Delivery Time:
※ Within 30 Days.
FAQ
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
How is the transportation?
By sea, by air and land transportation.
