Product Details:
Payment & Shipping Terms:
|
| Diemension: | 2700*2300*1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Size: | Max 1200*330mm | PCB Clamping: | Adjustable Pressure Pneumatic |
| Camera: | 5 | Mounitng Height: | 5mm |
| Power Consumption: | 6KW | Warranty: | 12 Months |
| High Light: | Dual arm smt mounter Machine,rigid PCB smt mounter Machine,34 Heads flexible strip making machine |
||

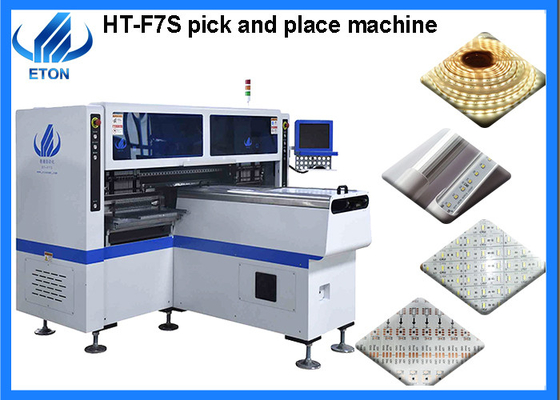

Dual arm 34 heads suitable for mounting 0.5m,1m LED flexible strip, rigid PCB 180000CPH smt mounter
Product Description
The PCB length width: Max 1200*330mm min 100*100mm
5 sets of digital camera: vision alignment and Mark correction, to ensure high precision mount

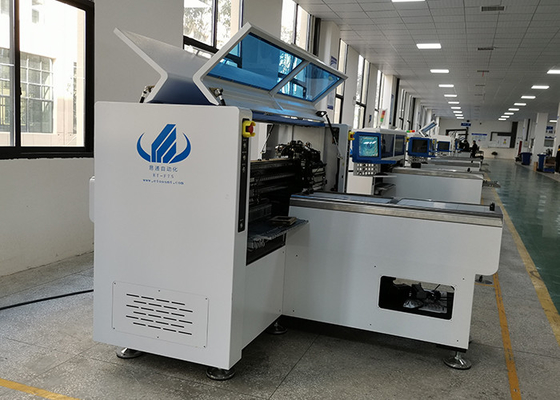

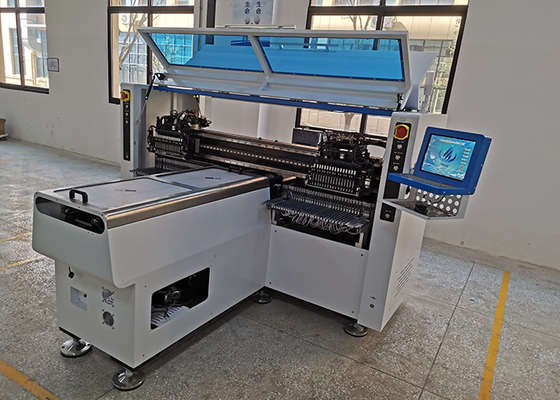

34 heads dual arm professional high-speed mounter
PCB clamping: Adjustable pressure pneumatic
Machine parameter
| PCB thickness | 0.5~5mm |
| Mounting mode | Group to take and group to mount |
| Repeat mounting precision | ±0.02mm |
| Mounting height | ≤5mm |
| Mounting speed | 150000~180000CPH |
| Components space | 0.5mm |
| Power | 380AC 50HZ |
| Positioning way | optical |
Machine feature
1. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m, 1m LED flexible strip.
2. Producing with 2~4 types of materials with high capacity, reach 180000CPH
3. Available for board with any proportion of LED chip and resistor.
Application
Suitable for any length of flexible strip.
SMT production line
We can provide u a whole line production line solution and equipment. This is our HT-F7S pick and place machine of semi-automatic production line, as follows:
Package
Exhibition
We participate in various large-scale exhibitions at home and abroad every day, such as
Domestic exhibition:Guangzhou international lighting Exhibition, Shanghai Munich Exhibition,Chongqing LED Light Exhibition,etc
Overseas Exhibition: India Delhi Exibition, Indai Mumbai Exhibition, Pakistan Exhibition, Egypt Exihibition, Tunisia Exihibition,Thailand Exhibition,etc
Service
FAQ
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.
If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
Q: If machine have any problem after I receive it , how can I do?
A: During the warranty period, we will replace it for you free, or we can arrange a process engineer to repair it for free
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q:How can we guarantee quality?
A: we have our own industrial park, a dedicated R&D and production department and we have more than ten years of experience in this field.
