Product Details:
Payment & Shipping Terms:
|
| Dimension: | 3454*3035*1777mm | PCB Size: | 250(±10)mm*any Length |
|---|---|---|---|
| PCB Thickness: | 0.1~0.5mm | Mounting Way: | Group Picking And Group Placing |
| Mounting Mode: | Double Rail+Four Groups Of Placement Heads | Mounting Precision: | ±0.05mm |
| Mounting Speed: | Double Side:500000CPH, Single Side:250000CPH(Optimum Speed) | No.of Feeders Station: | Double Side:136PCS(single Side:68PCS) |
| No.of Head: | Double Side:136PCS(single Side:68PCS) | Power Consumption: | 9.6 KW |
| X,Y,Z Axis Drive Way: | High-end Magnetic Linear Motor And Servo Motor | Feeding Way: | Intelligent Electric Feeder With Double Motor |
| High Light: | Double Rail smt placement machine,Four Groups smt placement machine,500000CPH Pick And Place Machine |
||
Double Rail+Four Groups Of Placement Heads Ultra High-Speed Capacity Reach 500000CPH T9-2S Pick And Place Machine
Production Introduction of Pick and Place Machine T9-2S

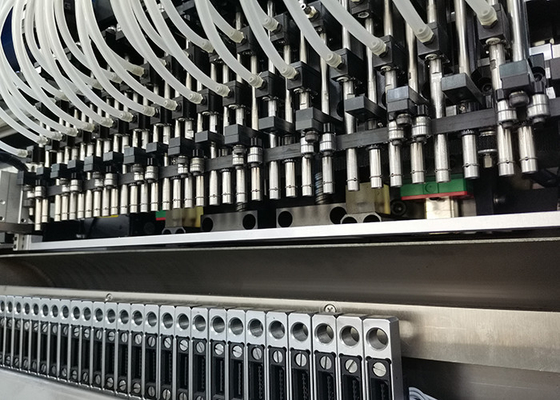

1. High-speed Modular Head, ETON Tech Adjustable Placement Head.
2. Apply to 3014/3020/2835/5050 resistor,capacitor,bridge rectifier etc.
3. Component picking position can be adjusted according to PCB pad pitch, min 6.5mm.
4. Unique Design Component Leaking Detection And Individual Component Refill Function: Recognition camera record the component leaking position of PCB,and fill the missing component accordingly.
5. Ultra-high-speed Capacity: The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
6. Adjust the conveying platform according to various roll to roll strip,range 250士10mm,the max length range is 1M per cycle.
7. The distance of feeder station can be flexibly adjusted to achieve group picking and group placing,so as to realize the function of two time picking and once placing.
8. The range of feeding station is double of placement head,can produce four kinds of materials at the same time.
9. Intelligent electric feeder,supporting high-speed machine series.
10. Flight recognition camera,no pause to detect the presence or absence of components,component adsorption state,prevent placement errors.
11. Automatic production with identification data,correction and fill missing component automatically.
12. The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
13. With the function of flling missing component automatically, realize Industry 4.0 Unmanned Workshop. Compliant with CE standards.
T9-2S of Technical Parameter
| Dimension | 3454*3035*1777mm |
| PCB Size | 250(±10)mm*any length |
| PCB Thickness | 0.1~0.5mm |
| Mounting way | Group picking and group placing |
| Mounting precision | ±0.05mm |
| Mounting height | ≤5mm |
| Mounting speed |
Double side:500000CPH Single side:250000CPH(Optimum speed) |
| Components | LED 3014/3020/2835/5050 and resistors,capacitors,bridge rectifiers etc. |
| Mounting mode | Double rail+Four groups of placement heads |
| No.of feeders station | Double side:136PCS(single side:68PCS) |
| No.of head | Double side:136PCS(single side:68PCS) |
| Power | 380AC 50Hz |
| Power consumption | 9.6 KW |
| X,Y,Z Axis drive way | High-end magnetic linear motor and servo motor |

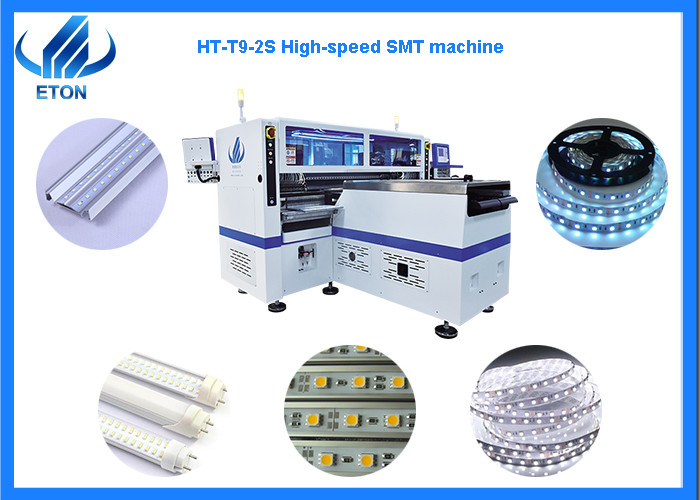

T9-2S Pictures
Application of HT-T9

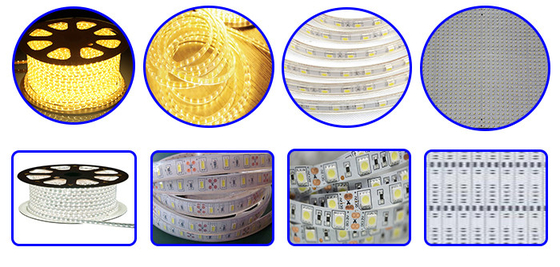

Apply to 5M,10M,25M, 50M or any length of flexible strip and Roll to Roll.
Company Introduction
Certification
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, we got 9 invention patents, 112 practical patents,12 software patents and have rich experience(more than 8 years) in LED light production line program.
Package and Delivery of Pick and Place Machine
All machines are packed with vacuum and wooden packing like the one in the pictures.
Step 1. Film packaging
Prevent the machine from dust ,water,crash and shaking.
Step 2. Add foam+film packaging
Double safe protection,Prevent the machine from crash and shaking.
Step 3. Unique tin foil packaging
Add tin foil packing can prevent the film from scratch broken.
Step 4. customized Strong wood carton packing
The customized strong wood packing for ocean ship,The machines are fix in the wood carton, effectively prevent collision and shock.
Our after-sales service of Pick and Place Machine
We provide send Free parts send to you in machine warranty period,and our engineers will visit to your factory help you to solve your machine’s problem.
Engineer site service installation and training.
After learning to maintain and use, you will be satisfied with our service.
Maintenance Period: 1 year. (whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free.
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
FAQ of Pick and Place Machine
Q: It’s hard to use the machine?
A: No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Q: Does your machines have quality certificates?
A: We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
Q: What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
Q: What’s your delivery time?
A: Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q: Is there any quality guarantee?
A: We stick to quality first, client-oriented, Continuous improvement!
