Product Details:
Payment & Shipping Terms:
|
| Screen Fras (Max Size): | 737mm | Screen Fras(Min Size): | 470mm |
|---|---|---|---|
| Thickness: | 25-40mm | Transport Height: | 900+-20mm |
| Transport Speed: | Max1200mm/s Programmable | Printer Head: | Two Magnetic Pin/up-down Table Adjusted |
| High Light: | PC control Stencil Printer Machine,Dialogue Function Stencil Printer Machine |
||

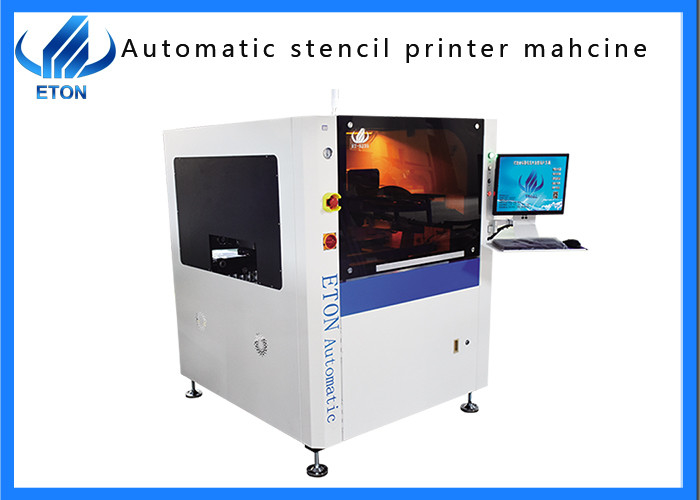

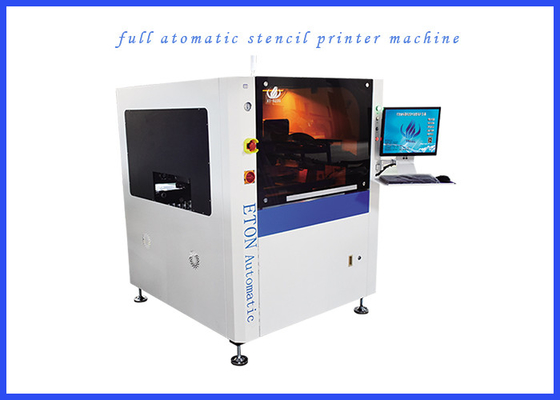

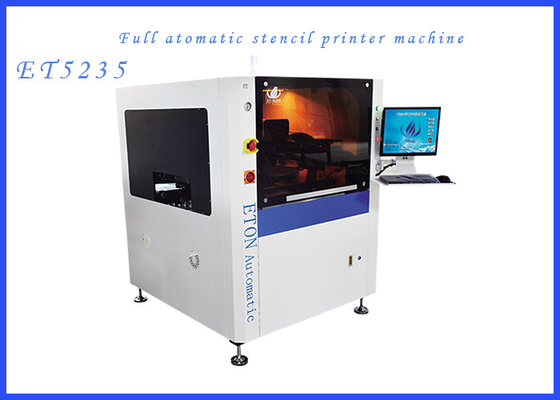

FULL AUTOMATIC VISION STENCIL PRINTER MACHINE ET5235 with Good man-machine dialogue function
Features
PCB transportation and positioning system
1. The direction of entering the plate can be selected arbitrarily and can be combined freely
2. Inner tooth transport belt with special process to prevent jamming
3. Programmable transportation speed control makes the stop more accurate
4. Flexible clamp is adopted to ensure that the PCB size is flat and the contact net is fully clamped between the PCB and the side. 4. The flexible clamp is adopted to ensure the effective switching between the PCB and the side
5. The optimized module driving structure can effectively improve the stability of platform adjustment and realize ultra-fine transmission under micro adjustment. It is a printing machine that meets the requirements of higher precision. The utility model has the advantages of simple and reliable structure and convenient adjustment, and can quickly realize different thicknesses
Steel mesh positioning system
1. Arch bridge type suspended direct scraper
2. Large and small steel nets are universal, with good and wide applicability
3. Sectional fixed steel mesh frame
| Model | ET5235 | |
|
Screen Frames |
Max Size | 737mm |
| Min Size | 470mm | |
| Thickness | 25-40mm | |
| PCB size | Max:520*350mm Min:50*50mm | |
| PCB thickness | 0.6-6mm | |
| PCB warpage | <1%(Max PCB diagonal) | |
| Transport height | 900+-20mm | |
| Transport direction | Left-Right;Right-Left;Left-Left;Right-Right | |
| Transport speed | Max1200mm/s Programmable | |
| Board location | Support system | Magnetic Pin/Up-down table adjusted by manual |
| Clamping system | Unique top flattened;side clamping | |
| Print speed | Two independent direct-connect motor-driven printheads | |
| Squeegee speed | 6-300mm/sec | |
| Cycle time | <=9s | |
| Product changeover | <5Min | |
| Air required | 4.5-6kg/cm | |
| Control method | PC control | |
| Dimension | 1240(L)*1450(W)*1650(H)mm | |
| Weight | Approx:700kg | |
| PCB transfer overhead height | 10mm | |
Company profile
ETON is not only in the leading position in the field of photoelectric high-speed mounter, but also has made a breakthrough in the field of SMT high-speed mounter. It has successfully developed a number of high-cost SMT high-speed universal mounter. Its products are widely used in lighting, display screen, electronics, driving power supply, household appliances, new energy and other industries.
EXhibition
Our exhibitions mainly include India exhibition, Pakistan exhibition, Thailand Exhibition, Egypt exhibition, Turkey exhibition, etc. the following are the photos of the exhibitions we have participated in and the different LED lamp manufacturers we have cooperated with.
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to yourfactory to train your staff for you .
Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
