Product Details:
|
| Machine Name: | SMT Machine / Pick And Place Machine/ Mounter | Mini Component Size: | 0201 |
|---|---|---|---|
| Max Component Size: | 40*40 Mm | Mounting Speed: | 80000 Cph |
| High Light: | High End SMT Mounting Machine,Cylinder clamping SMT Mounting Machine,80000cph smd Mounting Machine |
||
New upgrade 0201 BGA mounting machine
New upgrade mounting machine

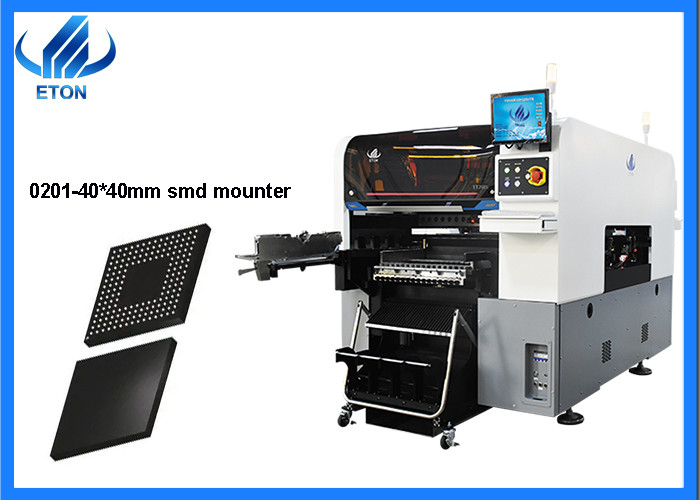

ETON newest smd smt mounting machine YT 202S is high speed and intelligent, ultra performance
Machine application
YT202S is high-end mounting machine, support for mounting 0201-40*40mm tape reel package and IC tray feeder.
The finished product like the household appliance driver board, tv display board, complicated BGA, Transistor, SOP, VR, CSP, QFP,TSOP mounting.
Machine features
Standard with two docking cart, easily for material change and save production line time
Using high precision optical recognition camera, fixed flight vision camera.
Brand new self-developed high-precision placement head.
Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
| Model | YT202S |
| PCB size (L*W) |
Max size: 500*450mm (single pcb) 500*300mm(double pcb) Mini size: 50*50 mm
|
| PCB thickness | 0.5-4.5 mm |
| PCB Clamping | Cylinder clamping, track width adjustable |
| Rail | 2 rail, 2 gantries(rail1,4 are fixed rail) |
| No. of camera | 4 sets |
| Mounting height | ≦ 20mm |
| Mounting speed | 80000 cph |
SMT Line solution
According to different product, design special line design, automatically line with the automatic printer machine, reflow oven machine ,loader/unloader equipment, pcb carrier, AOI, SPI test equipment.
RFQ
1. Which country has your machine been sold to?
A: Our machine have been sold to Egypt, Turkey, Vietnam, India, Saudi Arabia, Iran, Thailand, Russia, etc
2. Could I visit your local client factory ?
A: Sorry, it is depended on my client, I will ask for you and please keep contact with us at firstly. Otherwise, don’t worry about the machine install and training. Cause we are professional and provide the free door to door service for you with our local engineer.
