| System: | Window 7 | Software: | R&D Independently |
|---|---|---|---|
| Application: | SMT Assembly Production Line | PCB Size: | 250* Any Length |
| Delivery: | Within 30 Days | Mode Of Transport: | Sea/Train/Airplane |
| Warranty: | 1 Year | Package: | Carton Box |
| High Light: | SMT Line Pick And Place Machine,LED Strips pick and place machine,50W CPH smt assembly equipment |
||

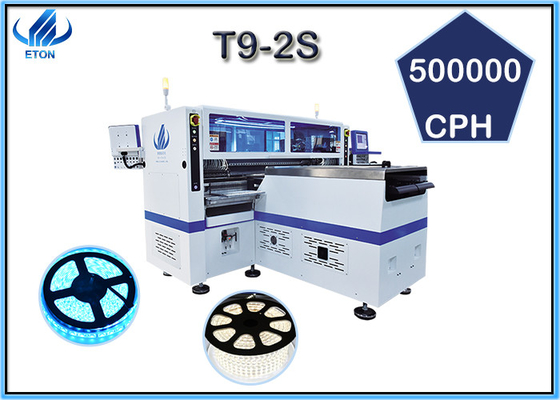

50W CPH ultra high speed capacity led strip SMT pick and place Machine
Choosing a placement machine depends on some of its performance indicators, and the performance indicators mainly look at these standards:
1. The type, specification, patch orientation, substrate size, and patch range of the originals that can be mounted conform to the specification standard!
2. SMD speed: The test CPH placement rate is not less than 60% of the nominal IPC9850 speed, or the SPC speed is not more than 2 times the nominal speed;
3. Flying rate: no more than three thousandths.
Feature
|
1. Component picking position can be adjusted according to PCB pad pitch,min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor,capacitor, bridge rectifier etc.wide component range. |
| 2. Unique Design Component Leaking Detection And Individual Component Refill Function- Recognition camera record the component leaking position of PCB,and fill the missing component accordingly. |
| 3. Ultra-high-speed Capacity -The placement head adopt the method of two times picking and once placing.
The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH. |
Parameter

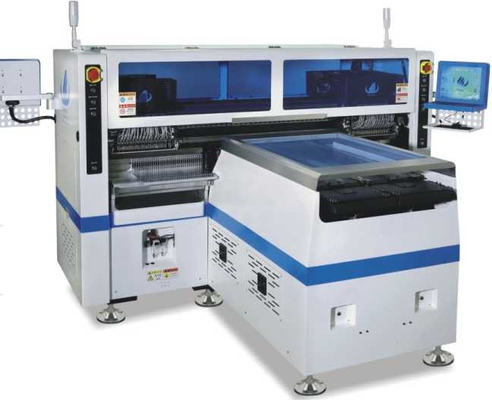

| Model | T9-2S |
| PCB | |
| PCB size( Width*Length) | 250(± 10)mm*Any length |
| PCB thickness | 0.1 -0.5mm |
| PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
| Mounting way | Group picking and group placing |
| Mounting mode | Double rail + Four groups of placement heads |
| Vision system | |
| No. of camera | 10 sets ( Digital camera ) |
| Vision alignment+Mark correction | |
| Repeat precision | ±0.05mm |
| Mounting height | W5mm |
| Mounting speed | Double side:500000CPH,single side:250000CPH(Optimum speed) |
| Components range | LED3014/3020/2835/5050 and resistor,capacitors,bridge rectifiers etc. |

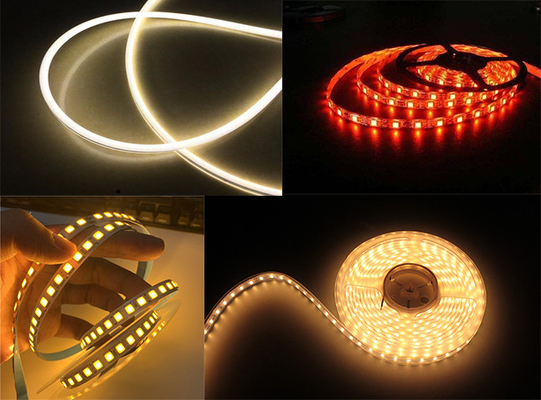

Wide use for kinds of components, products like 5M, 50M or any length of led flexible strip. roll to roll solution for you. ultra high speed capacity for you.
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. Over 10 years experience in SMT machine.
1.Own Industry Park over 50000 square meters.
2.provide the best service: Free technical training,free installation,free technical support, free upgrade whole lifetime.
3.Support customization: OEM/ODM.
4.Sometimes the machine is in stock. if you pay and we get the payment, we can arrange delivery immediately.
5.Large market share in the INDIA, EGYPT, TURKEY in more than 20 countries. Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt,etc
Quality is guaranteed: We got 9 invention Patents, 112 practical patents, 12 software copyrights.
ETON have CCC, CE, SIRA certification.
3. ETON is rated as “Shenzhen High-tech enterprise” ”Guangdong high-tech enterprise” “China high-tech enterprise” “2015 LED Technology Innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” etc.
1. LED bulb factory
2. LED display factory
3. LED Tube factory
4. LED Strip light factory
etc......
1. What servie can you provide?
1) local engineer in Indai, Turkey,Egypt; we can send the local engineer to install , debug, training for free. is very convenient.
2) online service 7*24 hours. you can feel free contact to us.
3) if you need, we can send Chinese engineers to your factory for free install and training.
2. How many machines in India? Do you have cusotmers in India? or Turkey?
We have sold over a hundred machines to India,
1)Big clients in India, such as: SURYA, Fiem, Calcom, RK, ploycrb, etc.
2)In Turkey, such as: ACK, KENDAL, KING, ZTS, .......
3.Which payment is save cost and convenient?
EXW is so convenient and save cost.
1) L/C payment have complicated procedure, which waste a lot of time on panyment, so you need to longer time to get machine, that must be delay your production plan and oppotunity. when the error in the letter of credit, you will have to pay a fee to correct the error, which will increase your cost.
2) CIF price need more price than L/C, it need add the freight, insurance fee on the basis of EWW price, and the delivery forwarder will charge ours more than your.
