Full automatic vision stencil printer machine
ET5235 Full automatic vision stencil printer machine features:
1.PCB transport and clamping system:
The PCB loading direction can be selected and combined freely.
Unique crafted internal gear conveyor belt to prevent jamming.
Programmable transport speed control makes PCB stop more precise
Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.
2.Stencil positioning system:
Arch bridge-shaped suspension hanging direct-connect scraper.
The size of steel mesh is universal,with good and wide applicability.
Segmented fixed steel mesh frame.Segmented fixed steel mesh frame.
3.Scraper system:
Cast aluminum scraper beam to ensure smoother running of scraper.
Programmable Suspension Self-Adjusting Stepper Motor Drives Print Head.
Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running.before and after printing.
4.Operation interface:
Easy-to-learn and easy-to-use friendly operation interface.
With good Human-machine dialogue function.
Make program files with teaching and navigation functions,with prompts for each step
One-key switch between Chinese and English, with operation log, fault record analysis and diagnosis and other functions.
5.Image and optical system:
X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side.
The polarizer is added inside,and the MARK of different shapes is automatically and accurately
grasped, and the upper, lower and coaxial three-way uniform light sources.
ET5235 stencil printer machine main parameter:
| Model | ET5235 | |
| Screen Frames | Max Size | 737mm |
| Min Size | 470mm | |
| Thickness | 25~40mm | |
| PCB Size | Max:520*350mm;Min:50*50mm | |
| PCB thickness | 0.1~0.6mm | |
| PCB warpage | ＜1%(Max PCB diagonal) | |
| Transport height | 900±20mm | |
| Transport direction | Max 1200mm/s Programmable | |
| PCB Board location | Support system | Magnetic Pin/Up-down table adjusted by manual |
| Clamping system | Unique top flattened ,side clamping | |
| Print head | Two independent direct- connect motor- drive print heads | |
| Squeegee speed | 6~300mm/sec | |
| Squeegee pressure | 0~10kg/cm2 | |
| Squeegee type | Steel scraper(Standard), PV scraper(Option) | |
| Stencil separation speed | 0.1~20mm/sec Programmable | |
| Cleaning system | Dry,Wet,Vacuum(Programmable) | |
| Printing accuracy | ±0.025mm | |
| Cycle time | ≤9s(Exclude printing&cleaning) | |
| Product changeover | ＜5Min | |
| Control method | PC control | |
| Dimension | 1240(L)*1450(W)*1650(H)mm | |
| Weight | Approx: 700kg | |
| PCB transfer overhead height | 10mm | |
| Air required | 4.5~6kg/cm2 | |

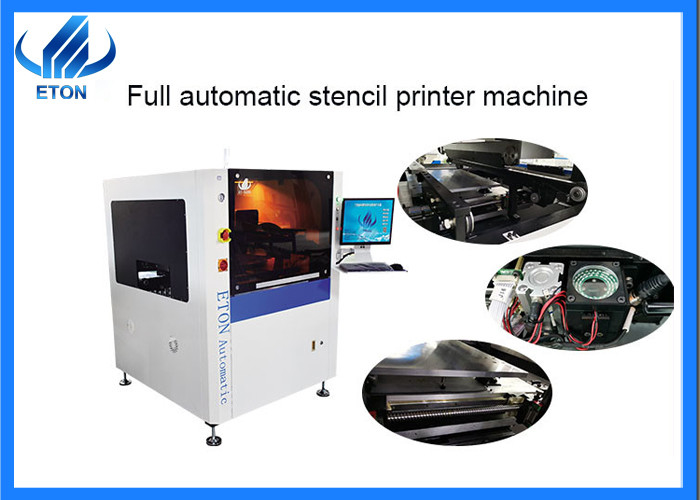

Machine picture and main part:
