Product Details:
Payment & Shipping Terms:
|
| Product Name: | Place Machine\ LED Mounter\LED Assembly Machine | Head: | 34 |
|---|---|---|---|
| Applicable Components: | 0402 | Name: | SMT Pick And Place Machine |
| Power Supply: | 380AC 50HZ | Weight: | 1700kg |
| Usage: | Circuit Board Assembly,SMT Mounting Machine,SMD,LED | Warranty: | 12 Months |
| High Light: | Strip PCB smt mounter machine,smt mounter machine Dual Arm,Flexible led lights assembly machine |
||

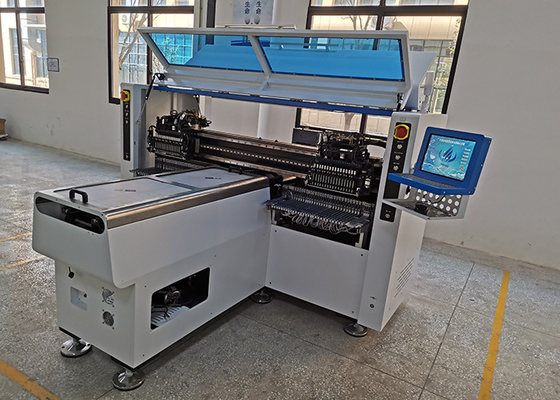

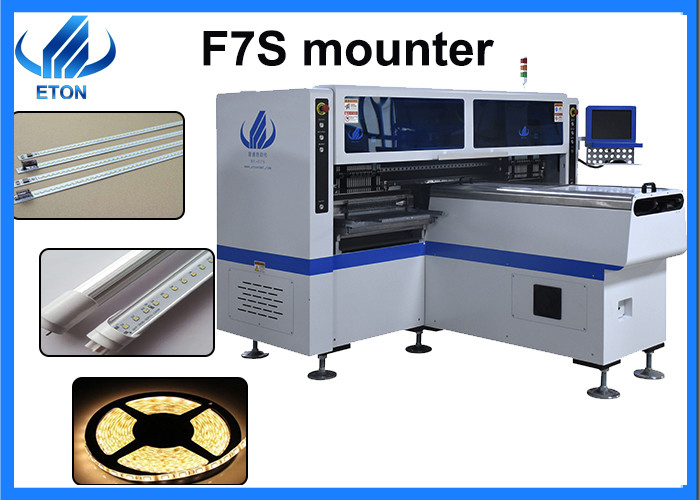

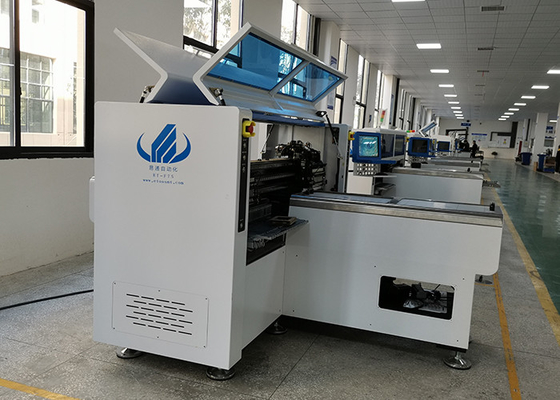

Dual arm professional highspeed flexible strip rigid PCB smt mounter machine
Product description
Dual arm professional high-speed mounter, adjustable pressure pneumatic.
Mounting mode is exclusive patent technology group to take and group to mount.
Vision system, 5 sets of digital camera, vision alignment, Mark correction
Product feature
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m,LED flexible strip.
Producing with 2-4 types of materials capacity reach 180000CPH
Available for board with any proportion of LED chip and resistor.
Calibration automatically, high precision, available for RGB.
Introduction to structure and function of Mounter
Frame is the foundation of the machine. All transmission, positioning organization and feeder are firmly fixed on it. Therefore, it is necessary to have satisfactory mechanical strength and rigidity.
PCB transmission and bearing organization - the transmission organization is an ultra-thin belt transmission system placed on the guide rail. Its function is to send the PCB to the predetermined position, and then send it to the next process after pasting.
Drive system - it is the key organization of the mounter and the primary index to evaluate the accuracy of the mounter. It includes XYZ transmission layout and servo system. Its functions include supporting the movement of the mounting head and supporting the bearing plane of PCB.
Application
Professional high-speed pick and place machine for mounting rigid PCB, LED flexible strip.
Company profile
Shenzhen Eton Automation Equipment Co.,lt is a China leading manufacturing of SMT high-speed pick and place machine and SMT peripheral automation equipment. The products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Egypt, Turkey, Russia , Brazil,etc.
Package
Our packaging process is handled by professionals, and the foreign trade staff will also take photos and records on site, so that customers can be more assured.
Our transportation mode is generally sea transportation or air transportation, which is mainly determined according to the needs of customers.
Exhibition
When there was no epidemic before, we would appear in various large-scale at home and abroad every year. We would have our own booths and bring our machines to more people. At the exhibition, we also won the love and support of many customers, so we insisted on doing our best.
Service
1.Free online service
2.Free provide production line solution and workshop layout
3.Free arrange engineer door-to-door installation and training
4.Free replace and repair of spare parts(within the warranty)
5.Lifelong free software upgrade
FAQ
Q: Why do you choose our product?
Provide 1-2 times a year free for machine repair, after the warranty period.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor.
