Product Details:
Payment & Shipping Terms:
|
Machine Type: | Highspeed SMT Machine | Dimension: | 3100*2300*1550mm |
---|---|---|---|
Weight: | 1700kg | Mounting Speed: | 200000~250000 CPH |
Head: | 68 Pcs | Feeding Way: | Electric Feeder With Double Motor |
High Light: | Dual Arm LED Flexible Strip Mounter,68 Heads Flexible Strip Mounter,SMT Chip Mounter 250000CPH |

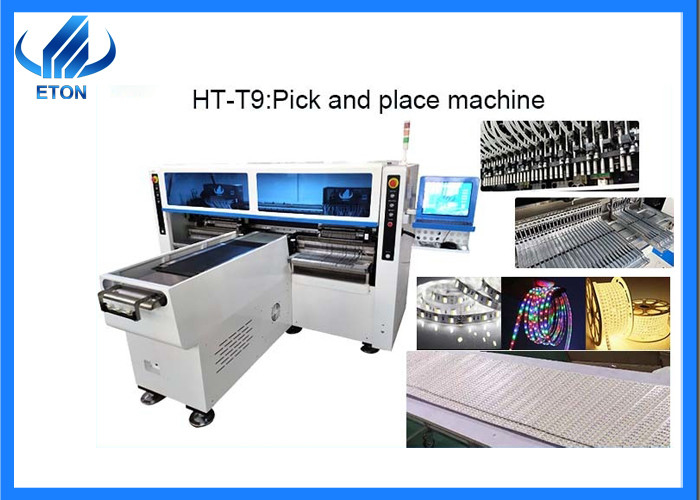

Dual Arm Led Flexible Strip Mounter 68 Heads 250000 CPH SMT Chip Mounter
Machine features:
1.HT-T9 SMT pick and place machine is for 5 meters, 50 meters and any length of wire board,disposable mount. Apply to LED soft lamp manufacturer.HT-T9 achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s identified the correct position by camera. So it’s high precision and good stability.
2.68 heads ,68 feeder stations.Capacity can Reach 250 000 CPH.
3.Vision alignment, Mark correction.Calibration automatically, high precision, available for RGB.
4.Exclusive patent technology:Group to pick and group to mount.
Machine main parameter:
Model | HT-T9 |
Dimension(L*W*H) | 3100*2300*1550mm |
Weight | 1700kg |
PCB length width | 250mm*any length |
PCB thickness | 0.5~1.5mm |
Mounting mode | Group to picking and group to mount |
Mounting height | ≤5mm |
No.of camera | 5 PCS |
Vision alignment, Mark correction | |
Components | LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
Components space | 0.5mm |
Mounting mode | Group to picking and group to mount |
Power consumption | 6KW |
Mounting speed | 200000~250000CPH |
No. Of feeders station | 68 PCS |
No. Of head | 68 PCS |
X,Y Axis drive way | High-end magnetic linear motor+Servo motor |
Feeding way | Electric feeder with double motor |
Machine main part:
Application:
HT-T9 SMT pick and place machine is for 5 meters, 50 meters and any length of wire board,disposable mount. Apply to LED soft lamp manufacturer.
Our Clients:
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.Take India as an example,We have many big clients in India, Such as RK,SURYA,Fiem,Calcom,POLYCRB, etc. We have sold over a hundred machines to India.
Certificate of honor and Exhibition:
ETON obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights.ETON is rated as "Shenzhen high-tech enterprise" "Guangdong high-tech enterprise" "China high- tech enterprise" "Shenzhen TOP Brand" "2015 LED Technology Innovation Award" "The 4th China LED First Innovation Award" "Industry Special Contribution Award" etc.
Our company participates in exhibitions at home and abroad every year (except during the epidemic period), such as:
Overseas: India Delhi Exhibition, India Mumbai Exhibition, Pakistan Exhibition, Egypt Exhibition, Tunisia Exhibition, Thailand Exhibition, etc.
Domestic: Guangzhou international lighting Exhibition; Shanghai Munich Exhibition; Chongqing LED Light Exhibition, etc.
Services:
FAQ:
1.Can I use CIF price?
CIF price need add the freight, insurance fee on the basis of EXW price, and the india delivery forwarder will charge ours more than yours. so actually to do EXW will more simple and save cost for you.
2.Does the price include spare parts(nozzle and feeder)?
Different client has different requirements on spare parts, it is not fair to clients to add In equivalent price for spare parts. So we don’t add the spare parts cost on price. And price is only for machine.
3.Why their machine price is so much lower than yours?
You said that there are some peeling machines cheaper than us on the market, which does exist, but their selling point is price, and our selling point is quality. We can guarantee you the quality of ETON pick and place machine, and the value is far more than our price.
4.What can you buy from us?
Pick and place machine, Automatic stencil printer,SMT machine,Reflow oven,LED light production line.
