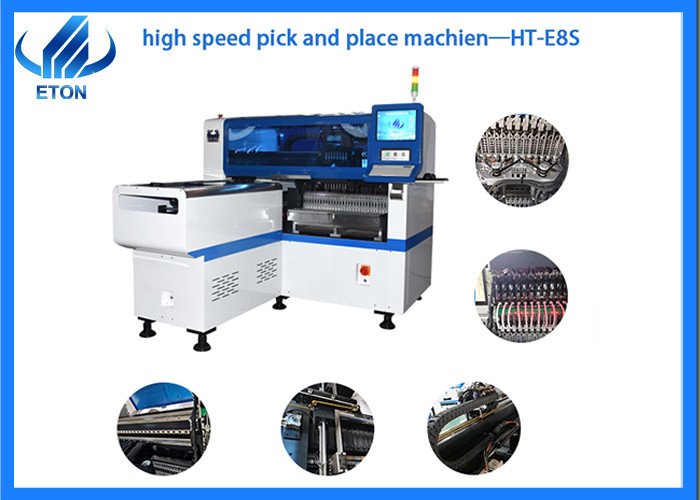

Automatic high speed 45000CPH 12 heads lens SMT pick and place machine
Technical Parameter
| Dimension |
2550mm*1650mm*1550mm |
| Total weight |
1700kg |
| PCB Length width |
1200*500mm-100*100mm |
| PCB Thickness |
0.5-5mm |
| Feeding way |
Electric feeder with double motor |
| Mounting precision |
±0.04mm |
| Conveyor transmission |
Max length: 1200mm |
| Transmission speed |
≤1000mm/sec |
| Component space |
0.2mm |
| Component height |
<15mm ( Automatic changing) |
| Transmission direction |
Both direction (Option ) |
| No. Of feeders station |
28PCS Single module |
| No. Of head |
12PCS Single module |
| Operating environment |
23℃±3℃ |
| Power consumption |
4KW |
| X, Y, Z Axis drive way |
High-end magnetic linear motor and serve motor |
the Features
1. suitable for a variety of products: LED bulbs, street light, table light, down lights, power driver, electric board, lens,display screens and linear products, such as LED tube, flexible strip
2. the range of components: led chips, resistor, capacitor, IC, lens, shaped components etc.
3. 12 PCS of heads, 28 PCS of feeders station, mounting speeds up to 45000 CPH.
4. electronic feeder feeding system, vision alignment flight identification, mark correction, non-stop material re-loading function,auto-optimization after coordinates generated.
5. The head structure is independent research and development by ETON, the structure and material are unique. and the mounting height is adjustable,up to 20mm.It can be applied to many high DOB components and has wider range of applications.
6. The X/Y axis uses high-end magnetic linear motor, which has higher accuracy and faster speed. Each head of Z axis is independently controlled by servo motor to ensure accurate mounting.
7. Automatic replenishment: If there is material missing or throwing,can fully-automatic material replenishing to save labor.
the production line
for HT-E8S, we usually support the semi-automatic production line, because it is more flexible and save costs and space.
the semi-automatic production line includs 5 machines, one set of semi-automatic stencil printer, two sets of single-rail conveyor, one set of pick and place machine, one set of reflow oven.
the SMT related machines
we not only support pick and place machine, but also provide the SMT peripheral automation equipment, such as loader, unloader, stencil printer, conveyor, translational conveyor, reflow oven and so on.
