Product Details:
Payment & Shipping Terms:
|
| Name: | SMT Pick And Place Machine | Dimension: | 2550*1650*1550mm |
|---|---|---|---|
| Weight: | 1500kg | Application: | SMT Production Line |
| Applicable Components: | 0402 | Power Supply: | 380AC 50HZ |
| Mounting Speed: | 45000cph | Warranty: | 1 Year |
| High Light: | LED pick and place machine 45000PCH,12heads LED pick and place machine,smt pick and place machine CCC |
||

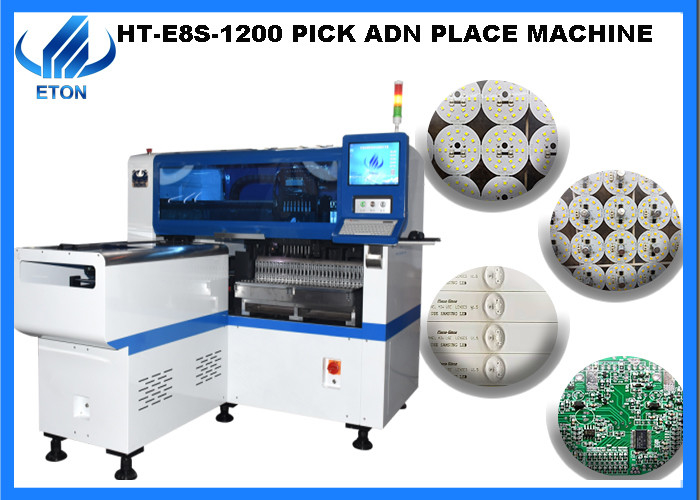

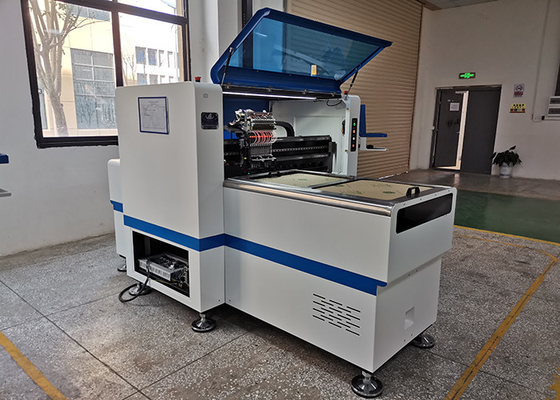

Multifunctinal capacity reach 45000PCH 12heads LED smt pick and place machine
Mounter Introduction
Pick and place machine, also known as "Mounter" and "surface mount system", is a kind of equipment configured after dispensing machine or screen printing machine. It is a kind of equipment that accurately places surface mount components on PCB pad by moving the mounting head. It is used to realize high-speed and high-precision placement of components. It is the most critical and complex equipment in the whole SMI and production.
Features
Mounting components: LED chip, resistor, capacitor, IC, lens, shaped components, etc.
Component: min.size 0402 max.height 15mm
Application: power drive, electric board, lens, DOB, linear bulb, household appliance, etc.
Machine parameter
| PCB length width | Max 1200*500mm min 80*80mm |
| PCB thickness | 0.5~5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Camera | 2 sets of imported camera |
| Components space | 0.2mm |
| Conveyor transmission | 1200mm |
| Power | 380AC 50HZ |
| Feeding way | Electric feeder with double motor |
Application
SMT production line
The semi-automatic production line is mainly composed of semi-automatic printing machine, pick and place machine, reflow oven and conveyor.
We can provide a whole production scheme and equipment for you.
package
1.our mahcine are packed in vacuum wooden cases, in order to prevent chemical reaction with some components during transportation, so as to better protect th e machine itself.
2.the salesman tracks the delivery process and records the whole loading process to ensure no erro in loading.
3.after loading, when the goods arrive at the port, we will cooperate with the forwarder to do customs clearance procedures.
Service
Besides, we have local office and engineers in Eypet, India, Damman etc.
we can provide 1-2 times free repair for mahcine after warranty.
we can provide you professional advice.
FAQ
Q: Why do you choose our product?
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service. As soon as you buy our machine, we will arrange engineers come to your factory for free install and train, until you learn to operate it.
Q:How can we buy from us?
A: Pick and place machine, smt production line, stencil printer, reflow oven, load/unload machine, feeder,nozzle,etc.
