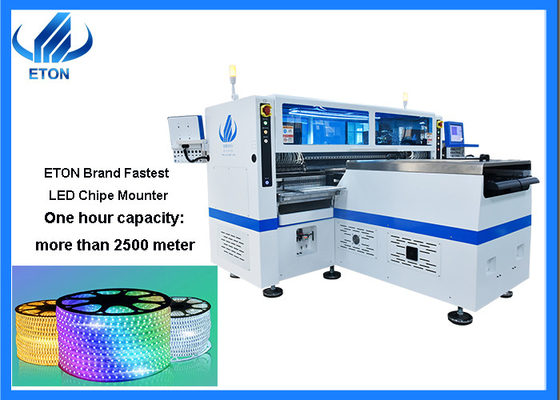

RGB Color Lighting Strip Light Pick And Place Machine SMD LED Chip Mounter Machine

RGB Color Lighting Strip Light Pick And Place Machine SMD LED Chip Mounter Machine
RGB Color Lighting Strip Light Pick And Place Machine SMD LED Chip Mounter Machine

Large Image :  RGB Color Lighting Strip Light Pick And Place Machine SMD LED Chip Mounter Machine

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-T9-2S
Detailed Product Description
Machine Name: Led Strip Light Chip Mounter Machine Machine Capacity: 500000 Cph
Machine Appliance: Roll To Roll Led Strip Light Machine Weight: 3100 Kg
High Light:

RGB Strips Pick And Place Machine

,

Lighting Strip Pick And Place Machine

,

SMD LED Chip Mounter Machine

RGB Color lighting strip light pick and place SMD led chip mounter machine



Machine features



1. ETON Tech Adjustable Placement Head

Component picking position can be adjusted according to PCB pad pitch, mini 6.5mm. Apply to LED 3014/3020/2835/5050 resistor, capacitor, bridge rectifiers etc. wide components range.

2. Unique Design Component Leaking Detection And Individual Component Refill Function

Recognition camera record the component leaking position of PCB, and fill the missing component accordingly.

3. Ultra-high-speed Capacity

The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000 CPH.



Machine parameter



Model T9-2S
PCB
PCB size(width*Length) 250(±10)mm*Any length
PCB thickness 0.1-0.5mm
PCB Clamping Vacuum adsorption, cylinder clamping, track width adjustable
Vision system
Number of camera 10 sets digital camera
Mounting speed Double side: 500000 CPH, Single side:250000 CPH
Component range Tape LED 3014/3020/2835/5050 and resistor, capacitors, bridge rectifiers, etc
X/Y/Z Axis driver way High-end magnetic linear motor and servo motor
Feeding system
No. of Feeder station Double side :136 PCS
No. of heads Double side :136 PCS
Feeding way Intelligent electric feeder with double motor



RGB Color Lighting Strip Light Pick And Place Machine SMD LED Chip Mounter Machine 0
