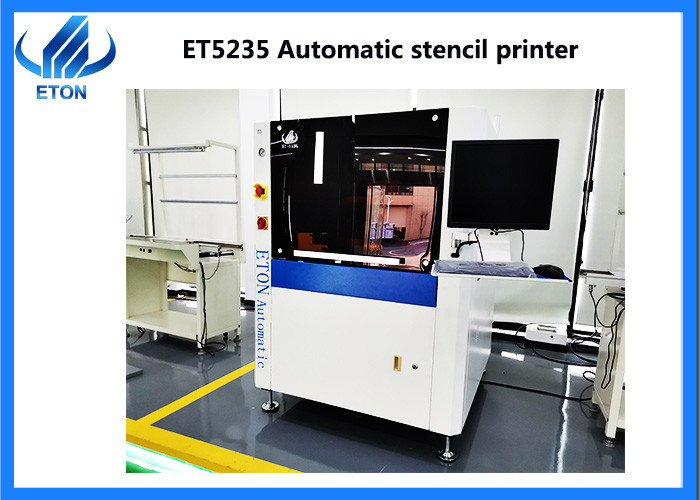

Automatic vision 12000mm/s transport speed ET-5235 stencil printer machine
Machine main features
1. PCB transport and clamping system
- The PCB loading direction can be selected and combined freely;
- Unique crafted internal gear conveyor belt to prevent jamming;
- Programmable transport speed control makes PCB stop more precise;
- Adopt flexible side clamps and segmented supports to effectively clamp the PCB to ensure a fully balanced contact between the PCB and the steel mesh.
2. stencil positioning system
- Arch bridge-shaped suspension hanging direct-contact scraper;
- The size of steel mesh is universal, with goof and wide applicability;
- Segmented fixed steel mesh frame.
3. Scraper system
- Programmable suspension self-adjusting stepper motor drives print head;
- Bilateral double-slider positioning type slide rail structure ensures the accuracy and smoothness of running before and after printing;
- Slide rail type scraper system, improve operation stability and prolong time;
- Embedded scale, never fall off.
4. Operation system
- Easy to learn and easy to use friendly operation interface;
- With good human-machine dialogue function;
- Make program files with teaching and navigation functions, with prompts for each step;
- One key switch between Chinese and English, with operation log, fault record analysis and diagnosis.
5. Image and optical system
- X,Y axis adopts high-precision grinding ball screw, driven by servo motors at both side;
- The polarizer is added inside, and the mark different shapes is automatically and accurately grasped, and the upper, lower and coaxial three way uniform light sources.
Machine main parameter
| Model |
ET-5235 |
| PCB size |
Max:520*350 mm
Min:50*50 mm
|
| Transport height |
900±20mm |
| Transport speed |
Max 1200mm/s programmable |
| Printing accuracy |
±0.025mm |
| Cycle time |
≤9s(Excluding printing&cleaning) |
| Control method |
PC control |
| PCB transfer overhead height |
10mm |
Market
Our products had exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Our Exhibitions
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Packages
As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.
FAQ
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Q. What services can you provide?
A.
- We provide whole line solution for our clients;
- We have local engineers in India, Egypt, Turkey. As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learned how to operate the machine, our service is very convenient;
- We also have Chinese engineers which provide online services to operate the machine to solve the problems with the machine;
- We will visit our clients for twice a year to operate the machine and view the status of the machine;
- Our clients enjoy a free up grade of the machine.
Q. Does your machines have quality certificates?
A. We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as
"Well-know brand" and many technology patents, and have rich experience
(more than 11 years) in LED light production line program.
