Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMD Chip Mounter,SMT Pick And Place Machine |
|---|---|---|---|
| Application: | SMT Production Line | Power Supply: | 380AV 50HZ |
| Weight: | 2500kg | Mounting Speed: | 80000CPH |
| Dimension: | 1200*1930*1500 | Feeders: | 64PCS |
| Pcb Thickness: | 0.1~6mm | Speed: | 80000CPH |
| High Light: | SMT mounting machine multifunctional,SMT mounting machine Double module,4 Cameras SMT mounting machine |
||

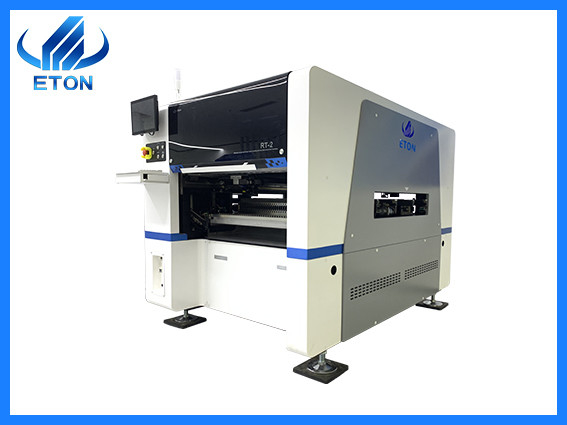

Double module multifunctional SMT mounting machine 4 sets of cameras
Product description
1. Magnetic linear motor multifunctional pick and place machine
2. It has four sets of cameras, two sets of MARK cameras and two
sets of flight recognition cameras
3. X,Y,Z Axis drive way is high-end magnetic motor
4. Mounting high components and small board products is not easy for
components to vibrate and loosen
| Dimension | 1200*1930*1500mm |
| Weight | 2500kg |
| PCB length width | 450*350mm 80*80mm |
| PCB thickness | 0.1~0.6mm(If<0.6mm need jig) |
| PCB clamping | pneumatic |
| Mounting mode | group picking and separately placing,separately picking and separately placing |
| NO.of camera | 4 PCS |
| Mounting precision | ±0.04mm |
| Mounting speed | 80000CPH |
| NO.of feeders station | 64PCS |
Detail description
MARK camera
MARK camera is a PCB board placement program by scanning the mark
point as a reference
Flight identification camera
Take a photo of the head to pick up the components, compare the placement
procedure with the MARK camera before, and calculate whether it is necessary
to compensate for the positive components
Production line
We can provide you with the production lines you need, such as fully automatic and semi-automatic
production lines. It can also be planned according to the products you produce. Our company can
provide you with all the machines above.
Company profile
Packing
First step:Using film packaging
Second step:vacuum packing
Last step:Wooden box
FAQ
1.How many kinds of mounter are there in your company?
A:We can roughly divide it into two types, one is a special machine, the other is a multi-function machine.
2.Is the conveyor just have one size?
A:The general size of the connecting conveyor is 500 / 600 / 1200 / 1400 / 1500mm, and the supporting size of the connecting conveyor is generally larger than that of the PCB.
3.Why we choose you company?
A:ETON has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
4.How long you can deliver the goods?
A:30% down payment,70% payment before delivery.
