| PCB Length Width: | Max: 450*350 Mm Min: 80*80 Mm | PCB Thickness: | 0.1-6mm(if <0.6mm Need Jig) |
|---|---|---|---|
| No. Of Camera: | 2 Sets | Mounting Speed: | 40000 CPH |
| Power Consumption: | 4KW | Transmission Direction: | Single Direction |
| X,Y,Z Axis Drive Way: | High-speed Magnetic Linear Motor And Servo Motor | Feeding Way: | Electric Feeder With Double Motor |
| No. Of Heds: | 10 PCS | ||
| High Light: | 220V AC SMT mounting machine,Multifunction SMT mounting machine,10 Heads LED Light Making Machine |
||

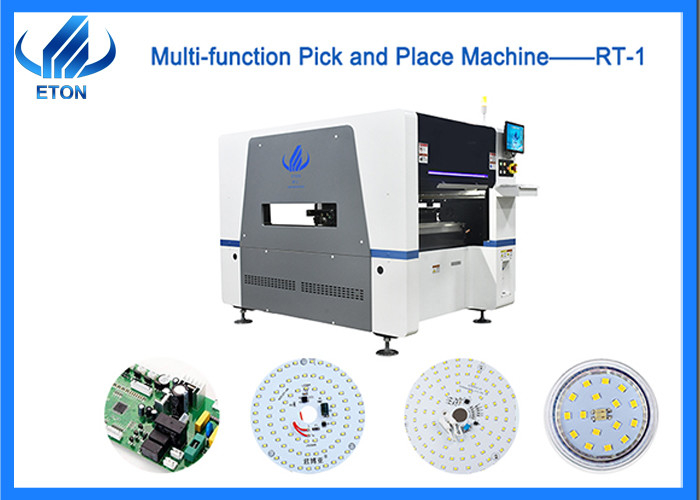

Multi-function 10 heads LED light 220 AC SMT mounting machine
the advantages of RT-1
1. New model RT-1 has increased the number of feeder station from 32 PCS to 42 PCS. To some extent, It is improving production efficiency and saving labor.
2. The X axis uses high-end magnetic linear motor, which has higher accuracy and faster speed. Each head of Z axis is independently controlled by servo motor to ensure accurate mounting.
3. The head structure is independent research and development by ETON, the structure and material are unique. and the mounting height is adjustable,up to 20mm.It can be applied to many high DOB components and has wider range of applications.
4. It is applicable to the wider range of components, and can be mounted with resistors, capacitors, IC, bridge rectifiers, inductors, terminals, diodes, transistors, large-capacitance transformers, shaped components.
5. Camera recognition system: vision camera, flight identification, Mark automatic correction,Auto-optimization after coordinates generated, to ensure high mounting precision.
6.Software:Independent research and development by ETON, free upgrade whole lifetime, saving costs.
the Tenchnical Parameter
|
Length |
1200mm |
|
Width |
1930mm |
|
Height |
1500mm |
|
Total weight |
2000kg |
|
PCB Length width |
Max: 450*350mm Min: 80*80mm |
|
PCB Thickness |
0.1-6mm ( If <0.6mm need jig) |
|
System |
Windows 7 |
|
Display |
Touch screen monitor |
|
Input device |
Keyboard, mouse |
|
Transmission speed |
1000mm/sec |
|
Mounting precision |
±0.04mm |
|
Transmission direction |
Single( left→right or right →left ) |
|
No. Of feeders station |
32PCS |
|
No. Of head |
10PCS |
|
Operating environment |
23℃±3℃ |
|
Power consumption |
4KW |
|
X, Y, Z Axis drive way |
High-end magnetic linear motor and serve motor |
|
Feeding way |
Electric feeder with double motor |
the SMT production line
the full-automatic production line can save labor and improve production efficiency. the machine includes: loader, full-automatic stencil printer, conveyor, pick and place machine, reflow oven and un-loader.
company advantages
1. Strong manufacturing capabilities:
1) 7 buildings,over 50000 square meters.
2) The Global Largest Production Capacity Supplier of LED Production Line. Control quality from the source. Support customization: OEM/ODM. Sometimes the machine is in stock. if you pay and we get the payment, we can arrange delivery immediately.
3) Most of mechanical part are manufactured by ETON,Show our work shop to you, such as: CNC workshop,Assembly workshop,Powder Spraying Workshop,etc.
2. Product:
1) Multi-functional machine:
suitable for led bulb, DOB bulb, linear bulb, power driver, led display, down lights,etc.
Can mount ultra small chip 0201.
2) High-speed pick and place machine:
suitable for no-wire led strip light, invent the first roll to roll machine in 2011.
the fast Capacity can reach 500000 CPH.
3) SMT Peripheral: stencil printer, conveyor, loader, etc.
Our company have professional SMT peripheral automation equipment division, and R&D team make sure the machine high quality.
FAQ
How about the operating software?
Our software is R&D independently by ourselves.
How about your company?
We have more than 11 years experience and have obtained a number of intellectual property technologies.Our products are exported to more than 20 countries and regions.
What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
Why choose us?
ETON is the famous brand for high-end pick and place machine. We have more than 10 years experience and professional R&D team, providing 24 hours quick response after-sales service.
How long is the period for delivery?
30 days after deposit.
