| No. Of Heads: | 12 PCS | No. Of Feeder Station: | 28 PCS |
|---|---|---|---|
| Feeding Way: | Electric Feeder With Double Motor | X, Y, Z Axis Drive Way: | High-end Magnetic Linear Motor And Serve Motor |
| Transmission Speed: | ≤1000 Mm/sec | Component Space: | 0.2 Mm |
| Component Height: | <15 Mm ( Automatic Changing) | Transmission Direction: | Both Direction (Option ) |
| Operating Environment: | 23℃±3℃ | Power Consumption: | 4 KW |
| High Light: | Automatic Led Lights Assembly Machine,45000 CPH Led Lights Assembly Machine,12heads SMT pick and place machine |
||

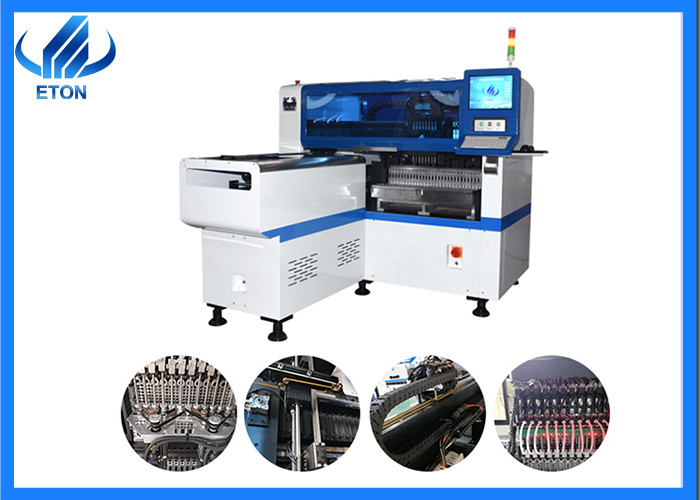

Automatic LED light 45000 CPH 12 heads pick and place machine
Technical Parameter
| Dimension 2550*1650* 1550 mm | |
| Total weight | 1700 kg |
| No. Of feeders station | 28 PCS Single module |
| No. Of head | 12 PCS Single module |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
| Feeding way | Electric feeder with double motor |
| PCB Length width | 1200*500~100*100 mm |
| PCB Thickness | 0.5-5 mm |
| Transmission speed | ≤1000 mm/sec |
| Conveyor transmission | Max length: 1200 mm |
| Mounting precision | ±0.04 mm |
| Component space | 0.2 mm |
| Component height | <15 mm ( Automatic changing) |
| Transmission direction | Both direction (Option ) |
| Operating environment | 23℃±3℃ |
| Power consumption | 4 KW |
The Features of HT-E8S
1. the mounting Head structure is independently developed with unique structure and material.
2.Flight identification system has Mark automatic correction, automatic compensation of mounting software.
3.Automatic feeding function is taking photos according to the identification camera, record the leakage position of PCB board, and realize automatic feeding by a separate feeding feeder .
4. the key parts is imported to ensure the high performance of the machine, such as Guide rail, drag chain, electrical parts etc.
5.the X, Y axis uses magnetic linear motor, which can ensure higher precision and faster speed.
the Components and Products
HT-E8S is a multi-function pick and place machine, which is suitable for all kinds of components and applications
For components, HT-E8S can mount LED chip 2835/3528/5050, capacitor, inductance, IC, diode, fuse, resistor, crystal, transformer, shaped components etc.
For products, HT-E8S is apply for all kinds of LED light, including LED bulb, street light, down light, spot light, table light, ceiling light, panel light, display, household appliance, DOB, power driver and so on.
The Production Line
for the semi-automatic production line, it has five machines: one semi-automatic stencil printer, two conveyors, one pick and place machine, one reflow oven.
semi-automatic stencil printer: leak the solder paste onto the PCB board
pick and place machine: mount the lamp beads or other electronic components to the designed position on the PCB
conveyor: used to transfer the circuit board in the production line
reflow oven: melt the solder paste to make it adhere to the mounting components
Company Introduction
mature experience: From 2007 to now, ETON has 15 years of R & D experience, professional and reliable.
Powerful products:ETON has universal machine and high-speed machine to meet all kinds of needs of different customers.
Proprietary technology: Since its establishment, ETON has been constantly studying and forging ahead. So far, it has obtained 133 certificates, including 9 invention patents, 12 software copyrights and 112 practical patents
Certificate of honor: ETON has won many awards with high gold content, such as the 2015 national high tech enterprise award, the industry special contribution award, the 4th China led initiative award and so on.
China domestic:ETON has an absolute market share in China, more than 80% of LED lamp manufacturers are our customers.
Abroad:ETON'S chip mounters are exported to more than 20 countries such as South Korea, India, Vietnam, Tunisia, Egypt and Turkey. There are many honorary customers, such as TCL, POLYCRB, Surya, CALCOM, etc.
Professional solution:We can customize a whole SMT production line for customers.
Free-installation:on-site free installation to ensure production smooth.
Free technical training:Free debugging and free staff training for customers.
Free technical support:7*24 technical online support.
Free software upgrade:Provide lifelong free software upgrade service.
One year warranty:If customers buy our machine, they will get a one-year overall warranty service.
FAQ
1.How about your company?
We have more than 11 years experience and have obtained a number of intellectual property technologies.Our products are exported to more than 20 countries and regions.
2.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
3.Why choose us?
ETON is the famous brand for high-end pick and place machine. We have more than 10 years experience and professional R&D team, providing 24 hours quick response after-sales service.
4.How long is the period for delivery?
30 days after deposit.
5.What are the main types of pick and place machine in your company?
The pick and place machine from ETON have two types, multifunctional pick and place machine and high-speed pick and place machine. The highest speed will reach 250000 CPH and produce 4 different types of material at the same time. In 2022, the newest machine has been born——ETON HONOR SERIES. Our machine can satisfy the different needs of your production.
