SINGLE MODULE SMT SMD 0402 45000CPH LENS MOUNTING PICK AND PLACE MACHINE
INTRODUCTION

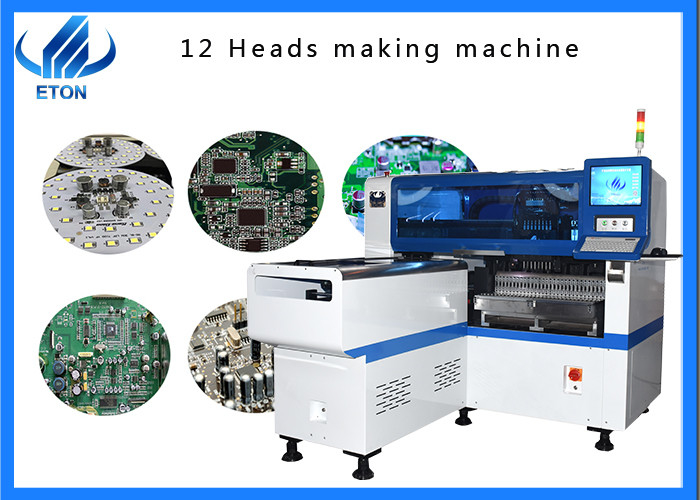

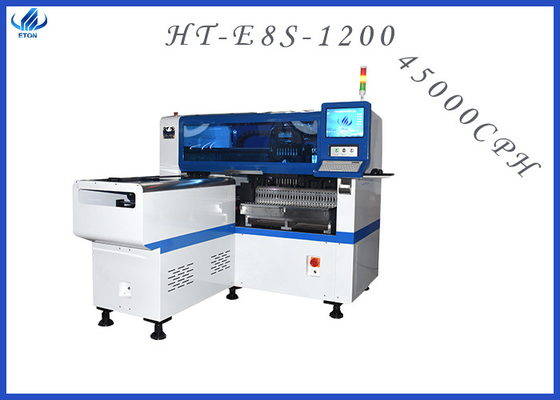

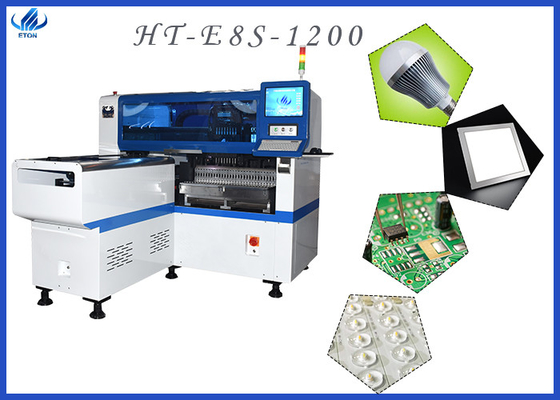

E8s-1200 single-mode maglev multi-functional high-speed Mounter with 12 heads and 28 suction nozzles. The mounter speed can reach 45000cph per hour. The multi-functional mounter is suitable for mounting spherical bulbs, panel lights, downlights, street lights, display screens, circuit boards and other products. Exclusive patented technology: group take and paste, separate take and paste The minimum mounting 0402 components and the maximum mounting part range are 15mm. The high-end brand Hikvision camera and high-end linear motor are adopted, which makes the mounting accuracy higher and the machine life longer.
Technical parameter
| Dimension(L*W*H) |
3150*2250*1650mm |
| PCB Length Width |
Max:1200*300mm Min:100*100mm |
| Mounting Mode |
Group picking and separate placingseparate picking and separate placing |
| PCB Clamping |
Adjustable pressure pneumatic |
| PCB Thickness |
0.5-5mm |
| System |
Windows7 |
| Software |
R&D independently |
| No. of Camera |
4 sets of imported camera |
| Mounting Speed |
45000CPH |
| Components |
LED , capacitors, resistors, IC, shaped components, etc. |
| No. of Feeders Station |
28PCS |
| No. of nozzles |
12PCS |
Introduction to machine functions of SMT production line
| Product Name |
picture |
function |
| Semi Stencil printer machine |
|
A device that leaks solder paste or patch glue onto the PCB pad to prepare for component welding |
| Conveyor |
|
It is used for the connection between SMT production lines. It can also be used for buffer, inspection, test of PCB or manual insertion of electronic components |
| Pick and place machine E8S-1200 |
|
Accurately install the surface assembled components to the fixed position of PCB |
| Reflow oven |
|
Melt the patch adhesive so that the surface assembled components and PCB board are firmly bonded together |
WHY choose us?
Shenzhen ETON automation equipment Co., Ltd., founded in 2011, is a manufacturing and process solution provider focusing on the R &D, production, sales and service of SMT high-speed mounter and SMT peripheral automation equipment.
With strong production capacity, ETON has an industrial park of more than 50000 square meters in Jiangxi Province, 7 buildings, more than 300 employees,supporting OEM & ODM, and the mechanical capacity is more than 50 sets / month
It has its own independent R & D team and more than 20 years of R & D experience.
certificate
The research and development of the machine has been guaranteed and obtained patent recognition. It has the world's first invention patent, 9 invention patents, 12 software copyrights and 112 utility model patents.
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park
