| Name: | Pick And Place Machine | Length: | 3454mm |
|---|---|---|---|
| Width: | 3035mm | Height: | 1777mm |
| Total Weight: | 3100kg | System: | Windows 7 |
| Software: | R&D Indenpendently | Display: | LED Dispaly |
| High Light: | 500000 CPH pick and place machine,pick and place machine 9.6KW,strip light pick and place machines |
||

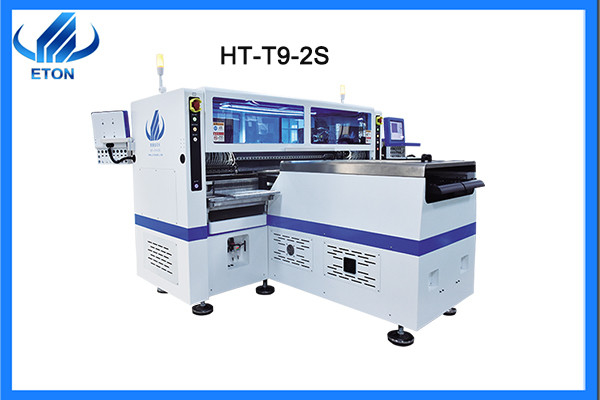

500000CPH 9.6KW 136 heads 136 feeders LED strip pick and place machine
Product description

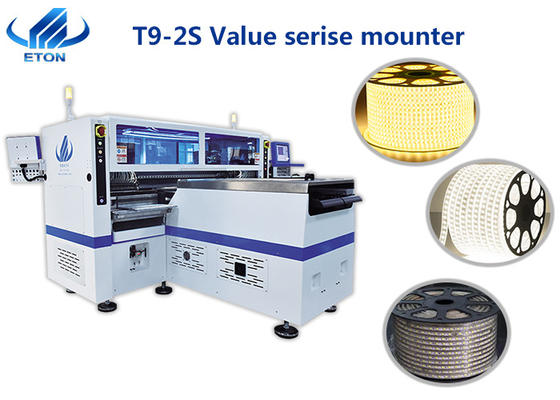

T9-2S is an upgraded version of T9. In order to meet the production capacity needs of customers, T9-2S came into being. Compared with T9, T9-2S is a dual-mode group with faster production capacity and more heads. The fastest production capacity can reach 500000 CPH. It is the fastest LED soft light tape Mounter in the world, and the price is similar to T9.
Vision system
Adopt three-color identification technology, choose China's top camera brand, with high-precision identification
Feature
| 1. ETON tech Adjustable Placement Head |
|
2.Unique design Component Leaking Detection And Individual Component Refill Function |
|
3.Ultra-high speed Capacity |
|
4.The maximum adjustable range of the feeder is twice that of the feeder, and can produce four kinds of materials at the same time |
| 5.Flight identification function, no pause to detect whether there are components. |
| 6.Identify data, automatic production, automatic correction function and replenishment function |
| 7. Equipped with intelligent feeder, group take and group paste, one paste and two reclaims |
|
8.Automatic placement of missing materials is realized through the material replenishment function |
Parameter
| PCB size | 250(±10)mm*any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption,cylinder clamping,track width adjustable |
| Mounting mode | Double rail+ Four groups of placement heads |
| No.of heads | 136 PCS |
| No.of feeders | 136 PCS |
| Feeding way | Intelligent electric feeder with double motor |
| No.of camera | 10 sets |
Company file
Our company focuses on the production of LED chip manufacturing machines, and has independently developed the world's first technological invention patents and property rights technology, including 9 invention patents, 12 software copyrights and 112 practical patents. It has won various certificates, such as well-known brands in Shenzhen and national advanced technology enterprises.
Exhibition
Our exhibitions mainly include India exhibition, Pakistan exhibition, Thailand Exhibition, Egypt exhibition, Turkey exhibition, etc. the following are the photos of the exhibitions we have participated in and the different LED lamp manufacturers we have cooperated with.
FAQ
Q1:How to train our employees after buying the machine?
A:First of all, we have service points in some countries. If the customer's company is located in these countries, we can provide on-site training and installation. If not, please don't worry. We will help your employees master the machine through online training, or if circumstances permit, we can send employees to your factory for training.
Q2:Is your machine difficult to master?
A:No, it's not difficult at all. Take our previous customers for example. They can learn it in five days at most.
